VLAN ACL Layer 2+ PoE Switch With 4 PoE Ports 2 SFP Fiber Ports SR-SHG3206FPI
Place of Origin | Shenzhen,China |
---|---|
Brand Name | Sirivision |
Certification | CE, ROHS, FCC, UKCA |
Model Number | SR-SHG3206FPI |
Minimum Order Quantity | 20 |
Price | Negotiation |
Packaging Details | 1pc in box, 1pc Warranty Card in box |
Delivery Time | 5-8 work days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 50000pcs Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xDimension | 159.7mm *115 Mm *38.1 Mm | Total Power | 130 W |
---|---|---|---|
Switching Capacity | 12Gbps | Input Voltage | DC 44-57V |
Safety Class | IP30 | Operating Temperature | -40℃ ~75℃ (-40℉~167℉) |
High Light | VLAN ACL Layer 2+ PoE Switch,VLAN ACL 4 ports poe switch,2SFP Layer 2+ PoE Switch |

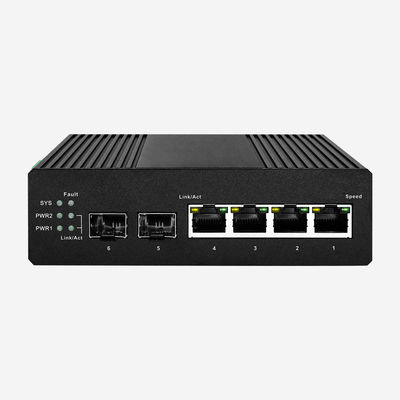

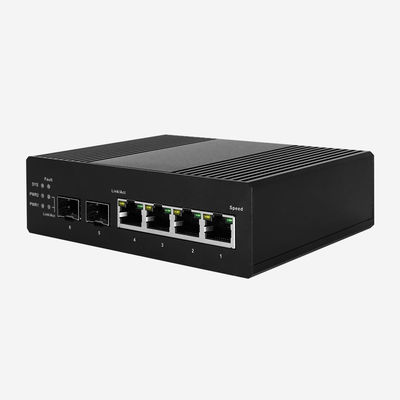

VLAN, ACL Layer 2+ PoE Switch With 4 PoE Ports, And 2 SFP Fiber Ports SR-SHG3206FPI
4 PoE Ports And 2 SFP Ports Industrial L2+ Managed Gigabit PoE Switch
Description Of The Industry Switch:
SR-SHG3206FPI is a full Gigabit managed industrial PoE switch with 4 10/100/1000M PoE ports and 2 10/100/1000M SFP fiber ports. 4 electrical ports can support IEEE 802.3af/at standard PoE power supply with a total power of 130W. it supports IEEE802.3, It supports IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab, IEEE802.3af, IEEE802.3at. protocol standards and complies with CE, ROHS, FCC, UKCA.
Features Of The Industrial Poe Switch:
- Provide 4 10/100/1000Mbps RJ45 ports, 2 SFP fiber ports.
- Support IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab,IEEE802.3af, IEEE802.3at.
- 4 PoE ports support 802.3af/at, per PoE power port up to 30W Poe budget.
- Support IPv4/IPv6 Static Routing, Address Resolution Protocol (Static ARP).
- Support non-blocking wire speed forwarding.
- IP30 protection grade, and ensures the stable operation of the equipment in bad environment.
Product Spectification Of The Din Rail Poe Switch:
SR-SHG3206FPI | |

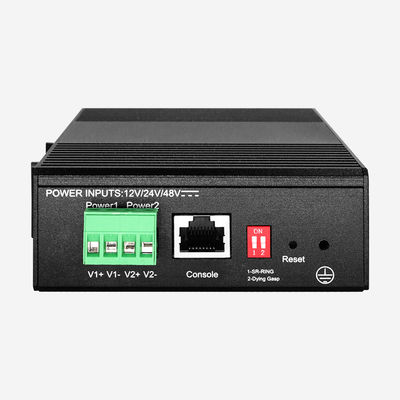

Power Supply | 44~ 57 VDC/ 3A(MAX) |
Standards | IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3af, 802.3at |
Ports | 4×10/100/1000Mbps RJ45 ports+2×SFP ports |
Indicators | Speed 1000M (green), network Indicator: Link (yellow), SFP Indicator: L/A (green) |
Ethernet Port Feature | 10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive |
SFP Port Characteristic | Gigabit SFP fiber interfaces, default matching optical modules, need to buy separately, (optional order mode / multi-mode, single fiber / double fiber optical modules). |
Forwarding Mode | Store and Forward(Full Wire Speed) |
Dimensions | 136 mm *108 mm *38.5 mm |
PoE port | 4 802.3at/af standard POE |
Max / Average Power Port | 30W per port |
Power Consumption | Standby:<10W(NOT PoE);Full load:<130W(with PoE) |
MAC Address Table | 8K |
Switching Capacity | 12Gbps |
Packet Forwarding Rate | 8.928Mpps |
Packet Buffer | 4Mbit |
Net /Gross Weight | <1.2kg / <1.5kg |
Warranty | 3 years , lifelong maintenance |
Environment | Operating Temperature: -40℃ — 75℃ (-40℉~167℉) Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Soft Features:
L3 Features | IPV4/IPV6 | ||||
Dynamic ARP | |||||
L2 Features | Flow Control | ||||
802.3x (full duplex) | |||||
Back pressure (half duplex) | |||||
Link aggregation | |||||
Spanning Tree | 802.1D (STP),802.1w (RSTP),802.1s (MSTP) | ||||
ERPS,BPDU Filtering | |||||
Self-loop detection | |||||
Automatic Edge Port | |||||
VLAN | Port based VLAN(4k) | ||||
MAC address-based VLANs | |||||
protocol based VLAN | |||||
Voice VLAN | |||||
Monitoring VLANs | |||||
IEEE802.1q VLAN,QinQ (IEEE 802.1ad),GVRP | |||||
4096 static VLANs | |||||
multicast | IGMP Snooping(v1,v2,v3) | ||||
Multicast VLAN, 1024 multicast groups | |||||
MLD Snooping V1/V2 | |||||
Multicast VLAN Registration (MVR) | |||||
Industrial Ring Network | ERPS Ring<20ms | ||||
QoS | 8 priority queues per port | ||||
TOS, DSCP, 802.1p priority field rewrites | |||||
Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP | |||||
ACL | L2/L3/L4, MAC-based, IP-based, port-based, VLAN-based | ||||
Security Features | IEEE 802.1X certification | ||||
Storm Control | |||||
DHCP Snooping | |||||
Dynamic ARP Check | |||||
BPDU,SSH v1/v2 | |||||
Management | Supported CLI, Console, SNMP v1/v2/V3, Web, RMON management | ||||
Diagnosis | mirror Many-to-One | ||||
UDLD,System Log (RFC3164) | |||||
System Diagnosis,Port Diagnostics,Network Diagnosis |
Product Application Of The Din Rail Ethernet Switch:
