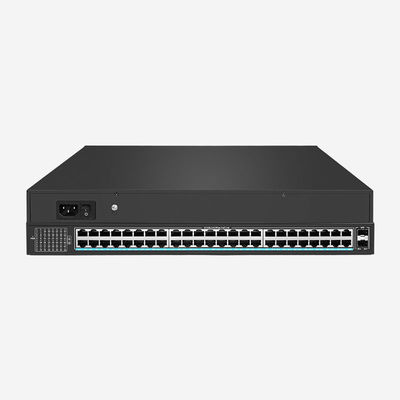

Jumbo Frame Support Gigabit Dumb PoE Switch With 48 RJ45 Ports And 2 SFP, Rack Mount
Place of Origin | Shenzhen,China |
---|---|
Brand Name | Sirivision |
Certification | CE, ROHS, FCC, UKCA |
Model Number | SR-SG1250FP |
Minimum Order Quantity | 20 |
Price | Negotiation |
Packaging Details | 1pc in box, 1pc Warranty Card in box |
Delivery Time | 5-8 work days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 50000pcs Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xNumber Of Fans | 2 | Switching Capacity | 100Gbps |
---|---|---|---|
Management | Unmanaged | Warranty | 3 Years |
Mounting Method | Desktop/rack Mount | Port Speed | 10/100/1000 Mbps |
Port Count | 50 | ||
High Light | 2 SFP Gigabit Dumb PoE Switch,RJ45 Gigabit Dumb PoE Switch,Rack Mount Gigabit Dumb PoE Switch |
Product Description:
Unmanaged Ethernet Switch
The Unmanaged Ethernet Switch is a dumb switch designed for easy installation and efficient data transfer. With its plug-and-play features, it is the perfect solution for small to medium-sized businesses looking for a reliable and cost-effective networking solution.
Key Features
Jumbo Frame Support: Yes
Mounting method: Desktop
Switching Capacity: 100Gbps
Dimensions: 440mm X 290mm X 45mm
Jumbo Frame Support
With Jumbo Frame Support, the Unmanaged Ethernet Switch allows for larger data packets to be transferred, resulting in faster data transfer speeds and more efficient network performance. This feature is especially beneficial for businesses that require large file transfers or high-bandwidth applications.
Mounting Method
The Unmanaged Ethernet Switch is designed to be mounted on a desktop or rack, making it suitable for small office spaces, home offices or server rooms. This allows for easy access and management of the switch, without taking up too much space.
Switching Capacity
The Unmanaged Ethernet Switch has a switching capacity of 100Gbps, allowing for high-speed data transfer between connected devices. This makes it ideal for businesses with a high volume of network traffic, ensuring a smooth and efficient data transfer process.
Dimensions
Measuring at 440mm X 290mm X 45mm, the Unmanaged Ethernet Switch supports 19-inch standard rack mount.
Conclusion
The Unmanaged Ethernet Switch is a reliable and efficient networking solution for small to medium-sized businesses. With its Jumbo Frame Support, and high Switching Capacity, it ensures fast and secure data transfer. Its 48 RJ45 ports and desktop mounting method make it a convenient and cost-effective choice for any business looking for an unmanaged fiber switch.
Features:
- Product Name: Unmanaged Ethernet Switch
- Power Supply: Internal
- Dimensions: 440mm X 290mm X 45mm
- Port Speed: 10/100/1000 Mbps
- Port Type: RJ45
- Unmanaged Ethernet Switch
- Easy to Install and Use
- High Speed Performance
- 10/100/1000 Mbps Port Speed
- RJ45 Port Type
- Reliable and Stable Connection
- Ideal for Medium to Large-Sized Networks
- Cost-Effective Solution for Network Expansion
Technical Parameters:
Technical Parameter | Description |
---|---|
Product Name | Unmanaged Ethernet Switch |
Power Supply | AC100~240V 50/60Hz |
Ports | 48×10/100/1000Mbps RJ45+2×1000Mbps SFP |
Mounting Method | rack mount |
Protocol standard | IEEE 802.3i,IEEE 802.3u,IEEE802.3ab,IEEE802.3x, IEEE802.3az, IEEE802.3af,IEEE802.3at |
Indicator light | Electrical port indicator, optical port indicator, power input indicator, system running indicator |
Port Type | RJ45 and SFP |
Dimensions | 440mm*290mm*44.5mm |
Number of Fan | 2 |
PoE port | 48 802.3at/af standard POE |
PoE Pin Definition | 1/2(+),3/6(-) |
PoE power | 360W |
Total power | 400W |
Forwarding mechanism | Store-and-Forward |
Switching Capacity | 100Gbps |
Forwarding Rate | 74.4Mpps |
MAC Address Table | 8K |
Cache | 4.1Mbit |
Jumbo Frame | 9KBytes |
Environment | Operating Temperature: 0℃ ~45℃ (0℉~113℉) Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
Applications:
The Sirivision Unmanaged Ethernet Switch is a high-performance, plug and play network switch designed for small to medium-sized businesses. It is an unmanaged switch, also known as a dumb switch, which means it requires no configuration and is ready to use right out of the box. With its compact size and powerful features, this switch is the perfect solution for businesses looking to improve their network traffic and data transmission.
Brand Name and Origin
The Sirivision Unmanaged Ethernet Switch is proudly designed and manufactured by Sirivision, a leading technology company based in Shenzhen, China. With years of experience in the networking industry, Sirivision is committed to providing high-quality and reliable products to its customers.
Product Features
Plug and play: No configuration required, simply plug in your devices and start using the switch.
Unmanaged switch: Does not require any network management skills, perfect for businesses without dedicated IT staff.
Jumbo frame support: Allows for larger data packets to be transmitted, increasing overall network performance.
Compact dimensions: Measuring at 440mm X 290mm X 45mm, the switch can fit easily into any network setup.
2 fans: Equipped with 2 fans for efficient cooling, ensuring stable and reliable operation.
Product Warranty
We stand behind the quality of our product and offer a 3-year warranty for the Sirivision Unmanaged Ethernet Switch. This warranty covers any defects in materials or workmanship, providing our customers with peace of mind and confidence in their purchase.
Applications and Scenarios
The Sirivision Unmanaged Ethernet Switch is ideal for a variety of applications and scenarios, including:
Medium to large-sized businesses looking for a cost-effective and easy-to-use network switch.
Home offices in need of a reliable and efficient network switch for multiple devices.
Schools and educational institutions looking to improve their network performance and data transmission.
Hotels and hospitality businesses requiring a stable and high-speed internet connection for their guests.
Brand Name | Place of Origin | Power Supply | Dimensions | Jumbo Frame Support | Warranty | Number of Fans |
---|---|---|---|---|---|---|
Sirivision | Shenzhen, China | Internal | 440mm X 290mm X 45mm | Yes | 3 Years | 2 |
Customization:
Port Count: 50
Number of Fans: 2
Warranty: 3 Years
Sirivision offers a wide range of customizable options for our unmanaged network switches. Our unmanaged ethernet switches are designed to provide reliable and efficient connectivity solutions without the need for complex management processes.
With our custom service, you can choose the number of ports, dimensions, and fan count that best fit your specific networking needs.
At Sirivision, we understand the importance of having a reliable and unmanageable switch for your network. That's why we offer a 3-year warranty to ensure the longevity and performance of our products.
Trust Sirivision for all your unmanaged ethernet switch needs. Our custom service allows you to tailor your switch to your unique requirements, ensuring seamless and efficient network connectivity. Contact us today to learn more about our unmanaged switch custom service.
FAQ:
- Q: What is the brand name of this product?
- A: The brand name of this product is Sirivision.
- Q: Where is this product manufactured?
- A: This product is manufactured in Shenzhen, China.
- Q: What is the maximum data transfer rate of this product?
- A: The maximum data transfer rate of this product is 1000 Mbps.
