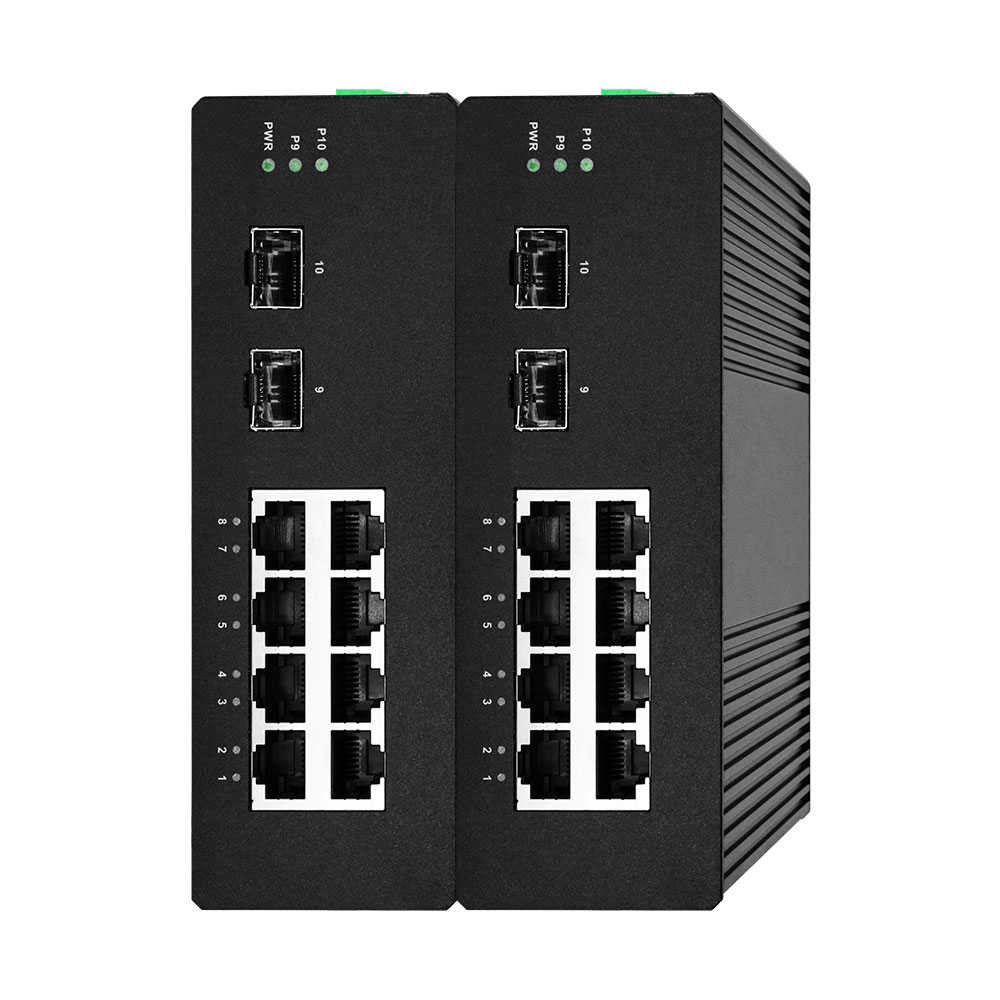

Wired/Remote Control Industrial Smart Switch 20Gbps High Protection Level
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | Sirivision |
| Certification | CE, ROHS, FCC, UKCA |
| Model Number | SR-SHG2210FI |
| Minimum Order Quantity | 20 |
| Price | Negotiation |
| Packaging Details | 1pc in box, 1pc Warranty Card in box |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 50000pcs Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Industrial Smart Switch | Control Mode | Wired/Remote |
|---|---|---|---|
| Working Humidity | 10%-90%RH | Switching Capacity | 20Gbps |
| Working Temperature | -40℃-75℃ | Connection Type | Wired |
| Size | 149.2mm *122mm *50mm | Power Input | 12V~57V DC,3A（MAX） |
| High Light | 20Gbps Industrial Smart Switch,Aluminum Industrial Smart Switch |
||
Product Description
Product Description:
The Industrial Smart Switch provides wired/remote control mode, and an input voltage of 12V~57V DC. It is an industrial managed switch that features an industrial fiber switch and industrial gigabit ethernet switch with a switching capacity of 20Gbps. This easy-to-use industrial switch provides superior performance, scalability, and reliability for industrial networks.
Features:
- Product Name: Industrial Smart Switch
- Rated Current: 3A(MAX)
- Input Voltage: 12V~57V DC
- Material: Aluminum
- Switching Capacity: 20Gbps
- Connection Type: Wired
- Keywords: Industrial Managed Switch, Industrial Gigabit Switch
Technical Parameters:
| Parameters | Details |
|---|---|
| Working Humidity | 10%-90%RH |
| Input Voltage | 12V~57V DC |
| Switching Capacity | 20Gbps |
| Working Temperature | -40℃-75℃ |
| Forwarding Rate | 14.88Mpp |
| Material | Aluminum |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Rated Current | 20A-50A |
| Dimensions | 149.2 mm *122 mm *50 mm |
| Network Protocol | IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX/FX, IEEE 802.3ab 1000BASE-TX, IEEE802.3i 10Base-T, IEEE802.3z 1000Base-X, IEEE802.3x |
Soft Features:
| L2 Switching Features | • IGMP Snooping - Supports IGMP Snooping - Supports 128 groups |
| • Link Aggregation - Supports static link aggregation - Supports 8 groups of aggregation, up to 4 ports per group |
|
| • Port Mirroring - One-to-one - Many-to-Many |
|
| • Support port isolation, port grouping | |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs) |
| • Supports Port VLAN and 802.1Q VLAN | |
| • Supports Port-based/802.1p/DSCP priority | |
| Quality of Service (QoS) |
• Support 4 priority queues |
| • Port Speed Limit | |
| • Storm Control | |
| Management | • Support WEB network management, IP:192.168.1.199 User name and password is:admin |
| Ethernet Protocols | • IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX | |
| • IEEE 802.3ab 1000BASE-T | |
| • IEEE 802.3x Flow Control | |
| • IEEE 802.1q VLANs/VLAN tagging | |
| • IEEE 802.1p QoS |
Applications:
Sirivision Industrial Smart Switch
Sirivision industrial smart switch is proudly designed and manufactured in Shenzhen, China. With its high quality Aluminum material and IP30 protection level, Sirivision smart switch is capable of withstanding even the harshest environment. The industrial smart switch is suitable for 12V-57V input. It is an ideal choice for industrial ethernet switch manufacturers, industrial gigabit switch, and other industrial ethernet switch manufacturers to build a reliable and efficient industrial network.
Customization:
Sirivision Industrial Smart Switch
- Brand Name: Sirivision
- Place of Origin: Shenzhen,China
- Size: 149.2mm *122mm *50mm
- Input Voltage: 12V-57V
- Rated Current: 3A(max)
- Power Supply: DC
Features:
- Industrial Managed Switch
- Industrial Fiber Switch
- Industrial Ethernet Switch
FAQ:
Q&A
Q1: What is the Industrial Smart Switch?
A1: The Industrial Smart Switch from Sirivision is an advanced switch that allows you to control the power of multiple devices simultaneously with a single switch. It is designed for industrial applications and is manufactured in Shenzhen, China.
Q2: What are the features of the Industrial Smart Switch?
A2: The Industrial Smart Switch has multiple features such as being able to control multiple devices, being able to set schedules for when the switch should be active, being able to monitor energy usage, and other advanced features.
Q3: What kind of devices can the Industrial Smart Switch power?
A3: The Industrial Smart Switch can power a variety of devices, including lights, heating and cooling systems, and other industrial applications.
Q4: What is the warranty for the Industrial Smart Switch?
A4: The Industrial Smart Switch comes with a 3-year warranty.
