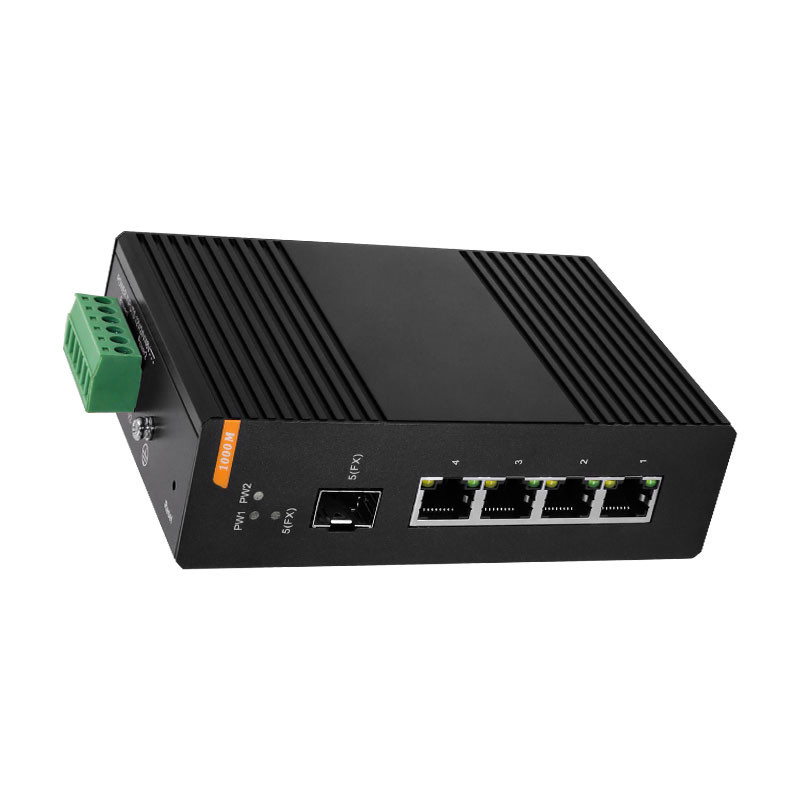

IP30 Protection Level Gigabit Industrial Smart Switch With 12Gbps Switching Capacity
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | Sirivision |
| Certification | CE, ROHS, FCC, UKCA |
| Model Number | SR-SHG2105FI |
| Minimum Order Quantity | 20 |
| Price | Negotiation |
| Packaging Details | 1pc in box, 1pc Warranty Card in box |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 50000pcs Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power Input | 12~57 VDC, 2A(MAX) | Product Name | Industrial Smart Switch |
|---|---|---|---|
| Size | 139mm*107mm*39mm | Working Humidity | 5%-95%RH |
| Switching Capacity | 10Gbps | Installation | DIN-rail/wall Mount |
| Highlight | IP30 Industrial Smart Switch,12Gbps Industrial Gigabit Switch,Industrial Smart Switch With QoS |
||
Product Description
Product Description:
Industrial Smart Switch is an advanced and reliable solution designed for industrial applications. It provides a rated current of 2A(max), switching capacity of 10Gbps, input voltage of 12V to 57V, power supply of DC, and working temperature range of -40℃ to 75℃. Manufactured by leading industrial ethernet switch manufacturers, it is a highly efficient industrial switch, and industrial managed switch. It ensures minimal downtime and maximum performance in harsh industrial environments.
The Industrial Smart Switch offers a fast, secure, and reliable connection to ensure a smooth flow of data. It features a wide range of safety measures to protect against any electrical hazards. It is also equipped with advanced features such as remote switch monitoring, port-based security, and Quality of Service (QoS). Furthermore, its smart power management ensures reliable power supply to connected devices.
The Industrial Smart Switch is designed for long-term use and is highly reliable. It is designed to minimize energy consumption and reduce operating costs. It is easy to install and has an intuitive user interface for efficient and convenient operation. It is also compatible with a wide range of industrial devices and networks.
The Industrial Smart Switch is a powerful and reliable solution for industrial applications. It is robust, reliable, and offers a secure connection for a variety of industrial applications. It is a cost-effective solution for industrial environments and provides an efficient and secure connection for a variety of industrial applications.
Features:
- Product Name: Industrial Smart Switch
- Connection Type: Wired
- Switching Capacity: 10 Gbps
- Size: 139 mm*107 mm*39 mm
- Industrial Gigabit Ethernet Switch
- Industrial Gigabit Switch
- Industrial Managed PoE Switch
- Industrial Smart Switch
Technical Parameters:
| SR-SHG2105FI | |
| Power Supply | 12~ 57 V DC/ 2A(MAX) |
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab |
| Ports | 4×10/100/1000Mbps RJ45 ports +1×SFP port |
| Indicators |
4 electrical port indicators, 1 SFP fiber port indicator, power |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Dimensions | 139 mm *107 mm *39 mm |
| MAC Address Table | 2K |
| Switching Capacity | 10Gbps |
| Packet Forwarding Rate | 7.44Mpps |
| Installation | DIN-rail/wall mount |
| Environment | Operating Temperature: -40℃ — 75℃ (-40℉~167℉) Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification Standards_ EMS |
IEC/EN 61000-4-2,Level 4 IEC/EN 61000-4-3,Level 4 IEC/EN 61000-4-4,Level 4 IEC/EN 61000-4-5,Level 3 IEC/EN 61000-4-6,Level 3 IEC/EN 61000-4-8,Level 5 IEC/EN 61000-4-9,Level 5 IEC/EN 61000-4-10,Level 5 |
Soft Features:
| L2 Switching Features | • IGMP Snooping - Supports IGMP Snooping - Supports 128 groups |
| • Link Aggregation - Supports static link aggregation - Supports 8 groups of aggregation, up to 4 ports per group |
|
| • Port Mirroring - One-to-one - Many-to-Many |
|
| • Support port isolation, port grouping | |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs) |
| • Supports Port VLAN and 802.1Q VLAN | |
| • Supports Port-based/802.1p/DSCP priority | |
| Quality of Service (QoS) |
• Support 4 priority queues |
| • Port Speed Limit | |
| • Storm Control | |
| Management | • Support WEB network management, IP:192.168.1.199 User name and password is:admin |
| Ethernet Protocols | • IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX | |
| • IEEE 802.3ab 1000BASE-T | |
| • IEEE 802.3x Flow Control | |
| • IEEE 802.1q VLANs/VLAN tagging | |
| • IEEE 802.1p QoS |
Applications:
Sirivision industrial smart switch is a reliable and effective solution to meet the requirements of modern industrial automation. Featuring rated current of 2A, protection level of IP30, size of 109mm*107mm*39mm, power supply of DC, this industrial smart switch is perfect for a variety of industrial applications, including industrial gigabit switch, industrial fiber switch and industrial managed switch. With its high quality and performance, Sirivision industrial smart switch is the ideal choice for those looking for reliable and durable industrial automation solutions.
Customization:
Sirivision Industrial Smart Switch
- Brand Name: Sirivision
- Place of Origin: Shenzhen,China
- Material: Aluminum
- Rated Current: 2A(max)
- Control Mode: Wired/Remote/Manual
- Size: 139mm*107mm*39mm
Sirivision's Industrial Smart Switch is the perfect solution for industrial gigabit switch, industrial switch, industrial ethernet switch manufacturers. With its superior performance and reliable quality, it is the go-to choice for your industrial networking needs.
FAQ:
Q1: What is the Brand Name of Industrial Smart Switch?
A1: The Brand Name of Industrial Smart Switch is Sirivision.
Q2: Where is the Place of Origin of Industrial Smart Switch?
A2: The Place of Origin of Industrial Smart Switch is Shenzhen, China.
Q3: What features does Industrial Smart Switch have?
A3: Industrial Smart Switch has many advanced features, such as remote monitoring, real-time data analysis, and safety systems.
Q5: What are the benefits of using Industrial Smart Switch?
A5: Industrial Smart Switch helps to reduce production costs, improve product quality, and increase production efficiency. It also helps to improve safety and reduce the risk of accidents.
