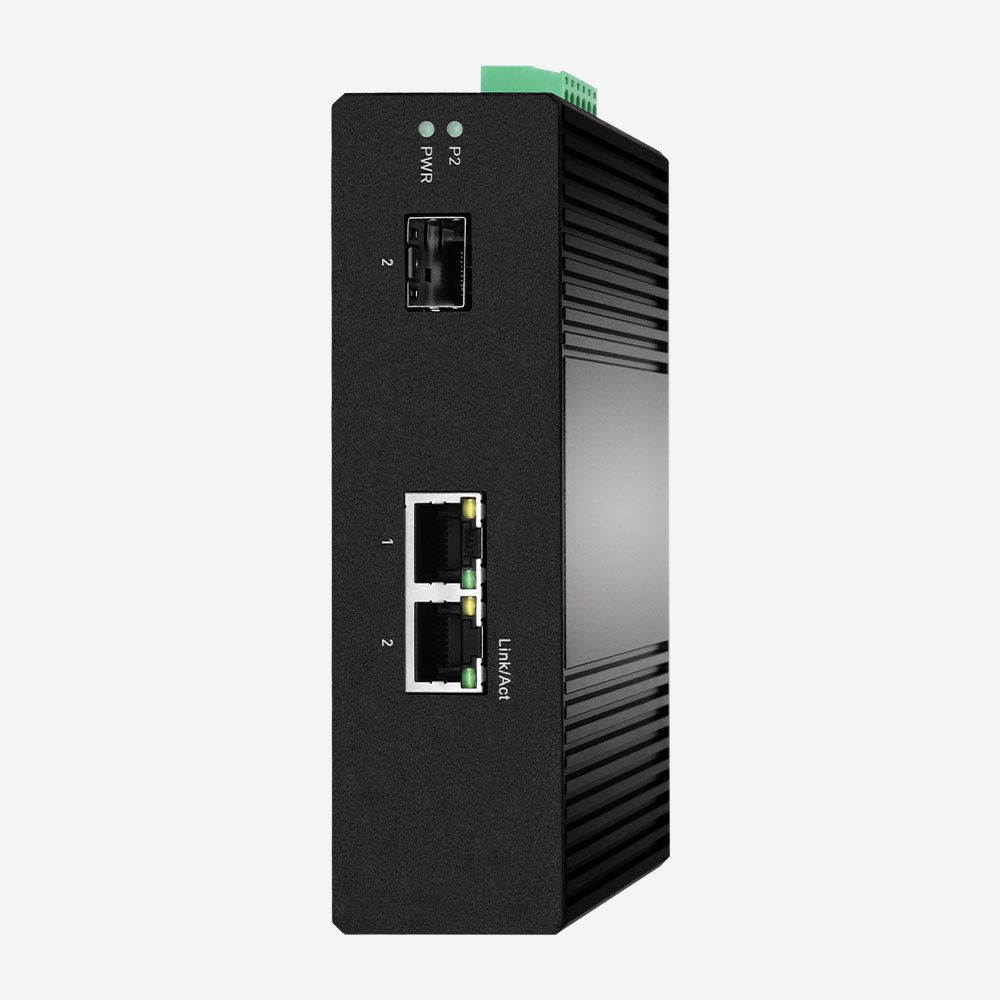

DC12V - 57V Managed Industrial Gigabit Switch Support WEB Visualization Manager
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | Sirivision |
| Certification | CE, ROHS, FCC, UKCA |
| Model Number | SR-SHG2103FI |
| Minimum Order Quantity | 20 |
| Price | Negotiation |
| Packaging Details | 1pc in box, 1pc Warranty Card in box |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 50000pcs Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Input Voltage | SR-SHG2103FI | Connection Type | Wired |
|---|---|---|---|
| Material | Aluminum | Size | 136mm*108mm*38.5mm |
| Product Name | Industrial Smart Switch | Cache | 1.5Mbit |
| Highlight | DC12V Industrial Gigabit Switch,Managed Industrial Gigabit Switch |
||
Product Description
Product Description:
Industrial Smart Switch is designed to meet the needs of industrial environments for reliable, robust and secure network connectivity. It is made of Aluminum material to ensure its durability and high performance. It is able to withstand extreme temperatures ranging from -20℃ to 75℃, and supports 12V-57V input voltages. This industrial switch is a managed switch and offers comprehensive features to ensure secure, reliable and robust industrial networks, such as industrial managed switch.
Features:
- Product Name: Industrial Smart Switch
- Material: Aluminum
- Output Voltage: 12V-57V
- Rated Current: 2A
- Size: 136mm*108mm*38.5mm
- Working Temperature: -40℃-75℃
- Special Features: Industrial Switch, Industrial Ethernet Switch Manufacturers, Industrial Managed Switch
Technical Parameters:
| Power Supply | 12~ 57 V DC |
|---|---|
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3x |
| Ports | 2×10/100/1000Mbps RJ45 ports +1×SFP port |
| Indicators | 2 status indicators Link/ACT, 1 SFP fiber ports indicator (Link), power indicator |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Dimensions | 136 mm *108 mm *38.5 mm |
| MAC Address Table | 2K |
| Switching Capacity | 6Gbps |
| Packet Forwarding Rate | 4.464Mpps |
| Installation | DIN-rail/wall mount |
| Environment | Operating Temperature: -40℃ — 75℃ (-40℉~167℉) Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification Standards_ EMS |
IEC/EN 61000-4-2,Level 4 IEC/EN 61000-4-3,Level 4 IEC/EN 61000-4-4,Level 4 IEC/EN 61000-4-5,Level 3 IEC/EN 61000-4-6,Level 3 IEC/EN 61000-4-8,Level 5 IEC/EN 61000-4-9,Level 5 IEC/EN 61000-4-10,Level 5 |
Soft Features:
| L2 Switching Features | • IGMP Snooping - Supports IGMP Snooping - Supports 128 groups |
| • Link Aggregation - Supports static link aggregation - Supports 8 groups of aggregation, up to 4 ports per group |
|
| • Port Mirroring - One-to-one - Many-to-Many |
|
| • Support port isolation, port grouping | |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs) |
| • Supports Port VLAN and 802.1Q VLAN | |
| • Supports Port-based/802.1p/DSCP priority | |
| Quality of Service (QoS) |
• Support 4 priority queues |
| • Port Speed Limit | |
| • Storm Control | |
| Management | • Support WEB network management, IP:192.168.1.199 User name and password is:admin |
| Ethernet Protocols | • IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX | |
| • IEEE 802.3ab 1000BASE-T | |
| • IEEE 802.3x Flow Control | |
| • IEEE 802.1q VLANs/VLAN tagging | |
| • IEEE 802.1p QoS |
Applications:
Industrial Smart Switch from Shenzhen-based Sirivision provides an all-in-one solution to your connectivity needs. Its wired connection options, along with its compact size of 136mm*108mm*38.5mm, make it perfect for industrial use cases. With an intput voltage of 12V-57V and a working humidity of 5%-95%RH, the switch is suitable for a variety of environments. As one of the leading industrial ethernet switch manufacturers, Sirivision provides reliable and secure industrial gigabit switch, industrial switch, and industrial serial switch products that will meet your needs.
Customization:
Sirivision Industrial Smart Switch
- Brand Name: Sirivision
- Place of Origin: Shenzhen, China
- Switching Capacity: 6Gbps
- Control Mode: Wired/Remote/Manual
- Protection Level: IP30
- Rated Current: 2A
Sirivision industrial managed switch is designed for industrial networking applications. It supports 6Gbps switching capacity, and provides industrial-grade protection with IP30 protection level. The switch can be controlled via wired, remote or manual control.
FAQ:
- Q: What is Industrial Smart Switch?
A: Industrial Smart Switch is a device manufactured by Sirivision, a company based in Shenzhen, China. It is designed to automate industrial processes and allow for remote control of industrial machinery and equipment. - Q: What features does Industrial Smart Switch have?
A: Industrial Smart Switch has a range of features, including an integrated web server, remote monitoring and control, remote diagnostics, and a wide range of connectivity options. - Q: How much does Industrial Smart Switch cost?
A: The price of Industrial Smart Switch depends on the specific model and features you choose. Please contact your local Sirivision dealer for more information. - Q: What types of industries can benefit from Industrial Smart Switch?
A: Industrial Smart Switch can be used in a variety of industries, including manufacturing, logistics, energy, and agriculture. - Q: What kind of technical support does Industrial Smart Switch provide?
A: Sirivision provides a range of technical support options for Industrial Smart Switch, including online tutorials, customer service, and troubleshooting guides.
