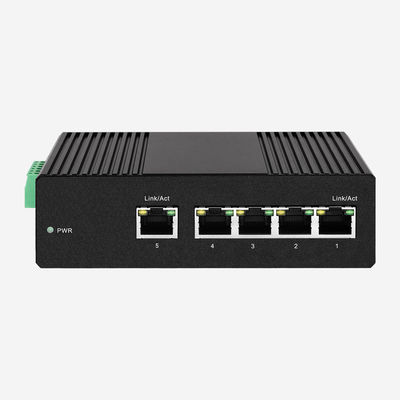

IP30 Industrial Gigabit Ethernet Switch Current 2A Input Voltage 12V-57V

  • IP30 Industrial Gigabit Ethernet Switch Current 2A Input Voltage 12V-57V
Place of Origin Shenzhen，China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-SHG2005I
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connection Type Wired Input Voltage 12~57V DC
Protection Level IP30 Control Mode Wired/Remote/Manual
Switching Capacity 10Gbps Working Temperature -40℃-75℃
Size 136mm*108mm*38.5mm
High Light

IP30 Industrial Gigabit Ethernet Switch

,

2A Industrial Gigabit Ethernet Switch

,

Aluminum Industrial Ethernet Switch
Leave a Message
Product Description

Product Description:

The Industrial Smart Switch is an ideal solution for industrial networks demanding high performance. It provides an efficient and reliable connection with 12V-57V input voltage, 5%-95%RH working humidity, 2A rated current and wired connection type. This industrial gigabit switch offers a secure, reliable, efficient and cost-effective network solution for industrial applications. With its industrial ethernet switch and gigabit ethernet switch, it is capable of providing high-speed data transfer for industrial network devices. It is ideal for applications such as machine vision, intelligent transportation, smart grids, digital factory and intelligent surveillance.



Features:

  • Product Name: Industrial Smart Switch
  • Material: Aluminum
  • Working Humidity: 5%-95%RH
  • Working Temperature: -40℃-75℃
  • Protection Level: IP30
  • Industrial Managed Switch: Yes
  • Industrial Gigabit Ethernet Switch: Yes


Technical Parameters:

Power Supply 12~ 57 V DC
Standards IEEE 802.3, 802.3i, 802.3u, 802.3x
Ports 5×10/100/1000Mbps RJ45 ports
Indicators 5 status indicators Link/ACT, power indicator
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 136 mm *108 mm *38.5 mm
MAC Address Table 2K
Switching Capacity 10Gbps
Packet Forwarding Rate 7.44Mpps
Installation DIN-rail/wall mount
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
Standards_
EMS		 IEC/EN 61000-4-2,Level 4
IEC/EN 61000-4-3,Level 4
IEC/EN 61000-4-4,Level 4
IEC/EN 61000-4-5,Level 3
IEC/EN 61000-4-6,Level 3
IEC/EN 61000-4-8,Level 5
IEC/EN 61000-4-9,Level 5
IEC/EN 61000-4-10,Level 5



Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
- Supports 128 groups
• Link Aggregation
- Supports static link aggregation
- Supports 8 groups of aggregation, up to 4 ports per group
• Port Mirroring
- One-to-one
- Many-to-Many
• Support port isolation, port grouping
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs)
• Supports Port VLAN and 802.1Q VLAN
• Supports Port-based/802.1p/DSCP priority
Quality of Service
(QoS)		 • Support 4 priority queues
• Port Speed Limit
• Storm Control
Management • Support WEB network management, IP:192.168.1.199
User name and password is:admin
Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS



Applications:

Sirivision industrial smart switch, with its high-end brand name, original place of Shenzhen, China, high-quality Aluminum material, wide working temperature range of -40℃-75℃ and humidity range of 5%-95%RH, is a perfect choice for industrial ethernet switch, and industrial switch 5 port. It offers various control modes, including wired, remote and manual, and has an input voltage of 12~57V DC, providing you with the most reliable and efficient industrial smart switch solution.

IP30 Industrial Gigabit Ethernet Switch Current 2A Input Voltage 12V-57V 0

Customization:

Customized Service for Industrial Smart Switch
  • Brand Name: Sirivision
  • Place of Origin: Shenzhen,China
  • Control Mode: Wired/Remote/Manual
  • Working Humidity: 5%-95%RH
  • Protection Level: IP30
  • Material: Aluminum

We specialize in providing customized services for Industrial Smart Switch, including industrial ethernet switch, industrial gigabit ethernet switch, industrial ethernet switch 5 port.



FAQ:

Q1: What is the brand name of Industrial Smart Switch?
A1: The brand name of Industrial Smart Switch is Sirivision.
Q2: Where is the Industrial Smart Switch manufactured?
A2: The Industrial Smart Switch is manufactured in Shenzhen, China.
Q3: What features does Industrial Smart Switch have?
A3: Industrial Smart Switch supports a wide operating temperature range from -40°C to +75°C.
Q4: What is the power supply of Industrial Smart Switch?
A4: Industrial Smart Switch is powered by DC12-57V.
Q5: Does Industrial Smart Switch support remote control?
A5: Yes, Industrial Smart Switch supports remote control via web.
