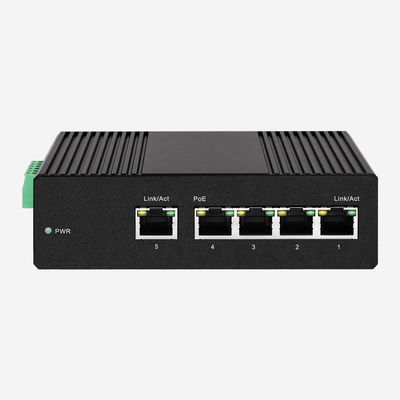

Aluminum constructed Gigabit Industrial Smart Switch With 5 RJ45 Ports / 4 PoE Ports

Place of Origin Shenzhen,China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-SHG2005PI
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Input Voltage 44~57 VDC Rated Current 2A(MAX)
Switching Capacity 10Gbps Connection Type Wired
Material Aluminum PoE Power 30W Per Port
High Light

Industrial Smart Switch With 5 RJ45

,

Aluminum constructed Industrial Smart Switch

Leave a Message
Product Description

Product Description:

Industrial Smart Switch is an advanced and reliable switch for industrial control applications. It features a rated current of 2A, and is constructed with Aluminum for superior durability and performance. It is designed to work in a wide range of temperature from -40℃ to 75℃, and offers wired connection. This industrial managed PoE switch is perfect for industrial Gigabit Ethernet applications, making it an ideal choice for industrial Gigabit switch and industrial Gigabit Ethernet switch needs.



Features:

  • Product Name: Industrial Smart Switch
  • Working Humidity: 5%-95%RH
  • Connection Type: Wired
  • Material: Aluminum
  • Working Temperature: -40℃-75℃
  • Industrial Gigabit Switch
  • Industrial Ethernet Switch PoE
  • Industrial Ethernet Switch Manufacturers


Technical Parameters:

Power Supply 44~ 57V DC
Standards IEEE 802.3, 802.3i, 802.3u, 802.3x
Ports 4×10/100/1000Mbps RJ45 PoE+ ports + 1×10/100/1000Mbps RJ45 port
Indicators 5 status indicators Link/ACT, power indicator
Forwarding Mode Store and Forward(Full Wire Speed)
Dimensions 136 mm *108 mm *38.5 mm
PoE port 4 802.3at/af standard POE+
Max / Average Power Port 30W per port
MAC Address Table 2K
Switching Capacity 10Gbps
Packet Forwarding Rate 7.44Mpps
Installation DIN-rail/wall mount
Environment Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Certification
Standards_
EMS
IEC/EN 61000-4-2,Level 4
IEC/EN 61000-4-3,Level 4
IEC/EN 61000-4-4,Level 4
IEC/EN 61000-4-5,Level 3
IEC/EN 61000-4-6,Level 3
IEC/EN 61000-4-8,Level 5
IEC/EN 61000-4-9,Level 5
IEC/EN 61000-4-10,Level 5



Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
- Supports 128 groups
• Link Aggregation
- Supports static link aggregation
- Supports 8 groups of aggregation, up to 4 ports per group
• Port Mirroring
- One-to-one
- Many-to-Many
• Support port isolation, port grouping
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs)
• Supports Port VLAN and 802.1Q VLAN
• Supports Port-based/802.1p/DSCP priority
Quality of Service
(QoS)
• Support 4 priority queues
• Port Speed Limit
• Storm Control
Management • Support WEB network management, IP:192.168.1.199
User name and password is:admin
Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS






Applications:

Introducing the Sirivision Industrial Smart Switch, the perfect solution for any industrial application. Its small size of 136mm*108mm*38.5mm allows it to be easily installed in tight spaces. With a wide range of input voltage between 44V-257V and DC power supply, the Sirivision Industrial Smart Switch can easily be integrated into any industrial environment. It also features an industrial gigabit ethernet switch, industrial ethernet switch manufacturers, industrial poe+ switch, industrial Ethernet switch, and industrial switch to meet a variety of industrial needs. With its high performance, easy installation, and reliability, the Sirivision Industrial Smart Switch is the perfect choice for any industrial application.

Aluminum constructed Gigabit Industrial Smart Switch With 5 RJ45 Ports / 4 PoE Ports 0

Customization:

Welcome to Sirivision's Industrial Smart Switch customization service! Our Industrial Smart Switch is designed to meet your most demanding needs. It supports wired connections, Aluminum alloy shell and has a protection rating of IP30. Our Industrial Smart Switch is perfect for industrial POE switch, Industrial Ethernet switch POE, and Industrial Managed POE switch applications.



FAQ:

Q1: What is the brand name of Industrial Smart Switch?
A1: The brand name of Industrial Smart Switch is Sirivision.
Q2: Where is Industrial Smart Switch manufactured?
A2: Industrial Smart Switch is manufactured in Shenzhen, China.
Q3: What are the features of Industrial Smart Switch?
A3: Industrial Smart Switch offers features such as remote control, real-time remote monitoring, and energy monitoring.
Q4: What kind of applications can Industrial Smart Switch be used for?
A4: Industrial Smart Switch can be used for a variety of applications, such as intelligent water management systems, and industrial automation.
Q5: What are the benefits of using Industrial Smart Switch?
A5: Industrial Smart Switch offers the benefits of improved energy efficiency, reduced operational costs, and increased safety and security.
