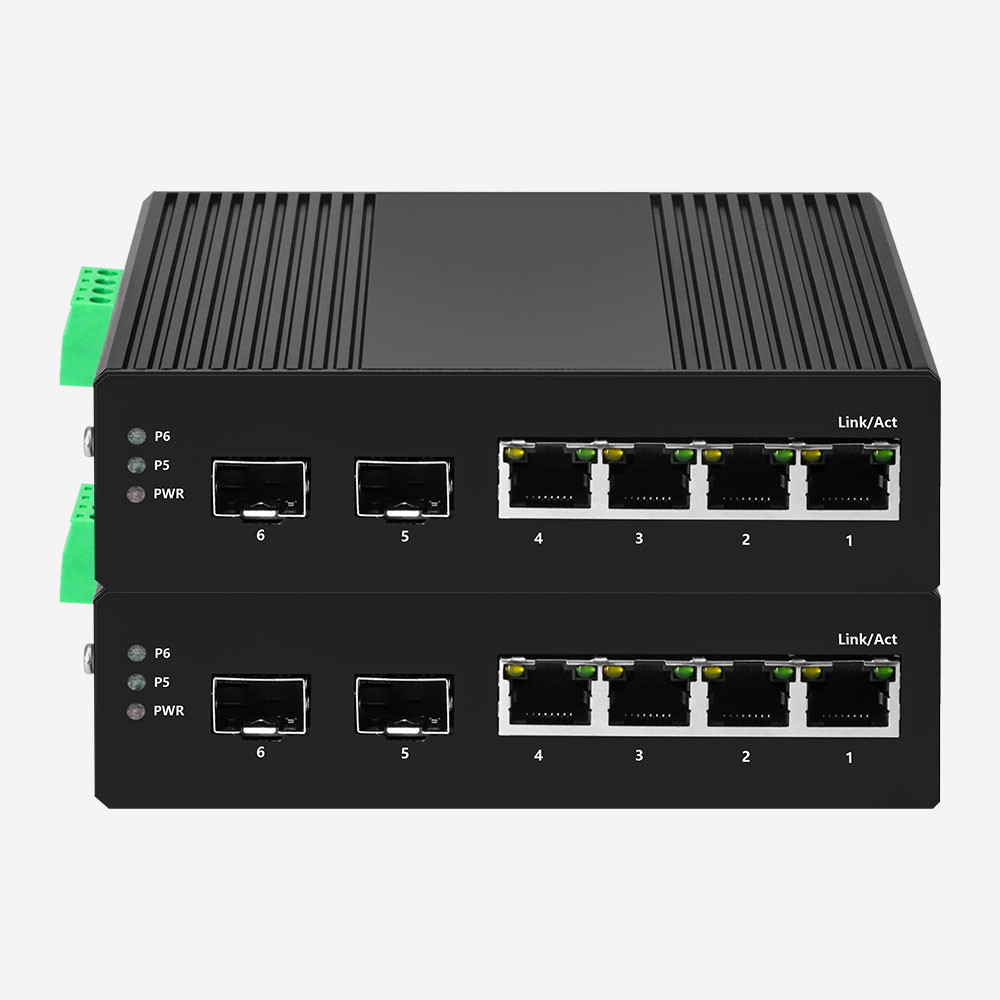

Efficient And Compact Gigabit Industrial PoE Switch For Reliable Network Connectivity
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | Sirivision |
| Certification | CE, ROHS, FCC, UKCA |
| Model Number | SR-SHG2206FPI |
| Minimum Order Quantity | 20 |
| Price | Negotiation |
| Packaging Details | 1pc in box, 1pc Warranty Card in box |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 50000pcs Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Current | 2A | Connection Type | Wired |
|---|---|---|---|
| Working Humidity | 5%-95%RH | Product Name | Industrial Smart Switch |
| Power Supply | 44~57 VDC | Size | 136mm*108mm*38.5mm |
| Highlight | Compact Industrial PoE Switch,Gigabit Industrial PoE Switch |
||
Product Description
Product Description:
Industrial Smart Switch is an advanced industrial-grade switch that provides reliable and stable performance for industrial applications. It is made of high-quality Aluminum material to ensure durability and reliability. It supports wired connection, allowing for easy access and control. It supports remote and manual control modes, making it easy to manage and operate. It is powered by DC power supply, providing a stable and secure power supply. Moreover, it has a switching capacity of up to 12Gbps, making it ideal for industrial managed POE switch, industrial managed POE switch, and industrial Ethernet switch POE applications. It is highly reliable and easy to use, making it the perfect choice for industrial applications.
Features:
- Product Name: Industrial Smart Switch
- Intput Voltage: 44V-57V
- Power Supply: DC
- Switching Capacity: 12Gbps
- Industrial Managed PoE Switch
- Industrial Managed Switch
- Industrial Gigabit Ethernet Switch
Technical Parameters:
| Power Supply | DC input voltage 44~57 VDC, Input current 2A(MAX) |
| Protocol Standards | IEEE 802.3,802.3i,802.3u,802.3x,802.3af,802.3at |
| Connection Type | Wired |
| Ports | 4×10/100/1000Mbps RJ45 PoE ports +2×1000Mbps SFP ports |
| Size | 136*108*38.5 mm |
| Material | Aluminum |
| Indicator light | 4 status indicators Link/ACT, 4 PoE indicators, 2 SFP port indicators (Link), PWR |
| Performance | Store-and-forward support, MAC address table depth 2K |
| Switching Capacity | 12Gbps |
| Forwarding Rate | 8.928Mpps |
| MAC Address Table | 2K |
| Packet Buffer Memory | 1.5Mb |
| Installation | DIN-rail/wall mount |
| Environment | Operating Temperature: -40℃ ~75℃ (-40℉~167℉) Storage Temperature: -40℃ ~85℃ (-40℉ ~185℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
| Certification Standards_ EMS | IEC/EN 61000-4-2,Level 4 IEC/EN 61000-4-3,Level 4 IEC/EN 61000-4-4,Level 4 IEC/EN 61000-4-5,Level 3 IEC/EN 61000-4-6,Level 3 IEC/EN 61000-4-8,Level 5 IEC/EN 61000-4-9,Level 5 IEC/EN 61000-4-10,Level 5 |
Soft Features:
| L2 Switching Features | • IGMP Snooping - Supports IGMP Snooping - Supports 128 groups |
| • Link Aggregation - Supports static link aggregation - Supports 8 groups of aggregation, up to 4 ports per group |
|
| • Port Mirroring - One-to-one - Many-to-Many |
|
| • Support port isolation, port grouping | |
| VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs) |
| • Supports Port VLAN and 802.1Q VLAN | |
| • Supports Port-based/802.1p/DSCP priority | |
| Quality of Service (QoS) |
• Support 4 priority queues |
| • Port Speed Limit | |
| • Storm Control | |
| Management | • Support WEB network management, IP:192.168.1.199 User name and password is:admin |
| Ethernet Protocols | • IEEE 802.3 10BASE-T |
| • IEEE 802.3u 100BASE-TX/FX | |
| • IEEE 802.3ab 1000BASE-T | |
| • IEEE 802.3x Flow Control | |
| • IEEE 802.1q VLANs/VLAN tagging | |
| • IEEE 802.1p QoS |
Applications:
Sirivision industrial smart switches provide an efficient and reliable way to power and control industrial devices. With support for gigabit, PoE+, PoE, and power over Ethernet (PoE), industrial applications can be powered and managed with ease. The switches are designed to work in environments with temperatures ranging from -40℃ to 75℃, and are compatible with DC power supplies. Made of high-quality materials such as aluminum, the switches are designed to be both durable and reliable.
The industrial smart switches from Sirivision are the perfect choice for powering and controlling industrial devices. With their support for multiple protocols, reliable power supplies, and robust construction, they are ideal for any industrial application. Whether it is powering devices, controlling operations, or providing secure connections, the industrial smart switches from Sirivision can do it all.
Customization:
Customized Industrial Smart Switch from Sirivision
Sirivision is a leading industrial smart switch manufacturer in Shenzhen, China. Our industrial smart switches are ideal for industrial Ethernet applications. With rated current of 2A, power supply of DC 44-57V, our industrial smart switch is designed to operate stably in a wide range of temperature, from -40℃ to 75℃.
We are professional industrial gigabit switch, industrial managed poe switch, and industrial ethernet switch manufacturers. Our industrial smart switch is designed with comprehensive features to meet your needs.
FAQ:
Q: What is Industrial Smart Switch?
A: Industrial Smart Switch is a product of Sirivision, a brand based in Shenzhen, China. It is a remote switch designed to control industrial devices, such as motors, pumps, and valves, safely and conveniently.
Q: What are the features of Industrial Smart Switch?
A: Industrial Smart Switch is designed with advanced features such as real-time monitoring, and adjustable parameters. It also has a high degree of safety and reliability, which makes it suitable for industrial applications.
Q: What are the advantages of Industrial Smart Switch?
A: The Industrial Smart Switch provides users with excellent control accuracy, fast response speed, and high stability. It is also easy to install and use, making it a great choice for industrial automation.
Q: What are the applications of Industrial Smart Switch?
A: Industrial Smart Switch is suitable for use in a variety of industrial environments, such as factories, warehouses, and construction sites. It is especially useful for controlling motors, pumps, and valves in these environments.
Q: What is the warranty policy for Industrial Smart Switch?
A: Sirivision provides a 3-year warranty for Industrial Smart Switch. Please refer to our website for more information.
