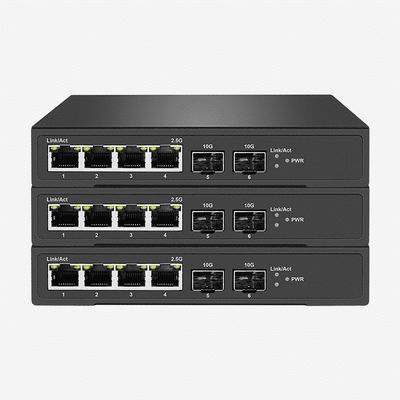

6 Ports 2.5 Gigabit Switch Reliable Networking Solution With 2 10G SFP+ And LED Indicators
Place of Origin | Shenzhen,China |
---|---|
Brand Name | Sirivision |
Certification | CE, ROHS, FCC, UKCA |
Model Number | SR-S25G2206FP |
Minimum Order Quantity | 20 |
Price | Negotiation |
Packaging Details | 1pc in box, 1pc Warranty Card in box |
Delivery Time | 5-8 work days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 50000pcs Per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xLED Indicators | Power, Link/Act | Network Media | 10Base-T: UTP Category 3, 4, 5 Cable (max100m) 100Base-Tx: UTP Category 5, 5e Cable (max100m) 1000Base-T: UTP Category 5e, 6 Cable (max100m) 1G/2.5GBase-T:UTP Category 5e, 6 Cable (max100m) |
---|---|---|---|
Switching Capacity | 45Gbps | Operating Temperature | 0°C~45°C |
Jumbo Frame | 10KB | Power Supply | 54V/1.2A |
Highlight | 2.5 Gigabit Switch with LED Indicators,2 10G SFP+ 2.5 Gigabit Switch |
Product Description:
2.5 Gigabit Switch is a highly-reliable, cost-effective switching solution for businesses and homes. With its powerful 2.5 Gbps switching capability, it can enable up to 10KB jumbo frame for efficient data transmission. It is designed with a power supply of 54V/1.2A for added convenience. Additionally, LED indicators are provided to monitor the power and link/activity status.
Features:
- Product Name: 2.5 Gigabit Switch
- Number of Ports: 4 2.5gb RJ45 + 2 10gb SFP+
- MAC Address Table: 4K
- LED Indicators: Power, Link/Act
- Operating Temperature: 0°C~45°C
- Keywords: 2.5 gb managed switch, 2.5 gig switch, 2.5 gb managed switch
Technical Parameters:
Technical Parameters | Specification |
---|---|
2.5 Gigabit Ethernet Switch | 2.5Gbps |
LED Indicators | Power, Link/Act |
Network Media | 10Base-T: UTP category 3, 4, 5 cable (max100m), 100Base-Tx: UTP category 5, 5e cable (max100m), 1000Base-T: UTP category 5e, 6 cable (max100m), and 1G/2.5GBase-T:UTP category 5e, 6 cable (max100m) |
Network Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.3z, IEEE 802.3af, IEEE 802.3at |
Jumbo Frame | 10KBytes |
Operating Temperature | 0°C~45°C |
Number of Ports | 4 2.5Gbps RJ45 + 2 10Gbps SFP+ |
Dimensions | 160 X 95 X 30 Mm |
PoE power per port | 30W |
Power Supply | 54V/1.2A |
Switching Capacity | 60Gbps |
Packet Forwarding Rate | 44.64Mpps |
PoE port | 4 802.3at/af standard POE |
PoE Pin Definition | 1/2(+),3/6(-) |
Packet Buffer | 8Mbit |
MAC Address Table | 4K |
Switch Architecture | Store-and-Forward |
Soft Features:
L2 Switching Features | • IGMP Snooping - Supports IGMP Snooping |
• Link Aggregation - Supports static link aggregation |
|
• Port Mirroring | |
• Cable Test | |
VLAN | • Supports up to 32 VLANs (out of 4K VLAN IDs |
• MTU/Port/802.1Q VLAN | |
Quality of Service (QoS) |
• Support Port-based/802.1p/DSCP priority |
• Support 4 priority queues | |
• Storm Control | |
• Rate Limit | |
Management |
• Web-based Graphic User Interface (GUI) • Smart-Configuration Utility |
Ethernet Protocols | • IEEE 802.3 10BASE-T |
• IEEE 802.3u 100BASE-TX/FX | |
• IEEE 802.3ab 1000BASE-T | |
• IEEE 802.3x Flow Control | |
• IEEE 802.1q VLANs/VLAN tagging | |
• IEEE 802.1p QoS |
Applications:
The Sirivision 2.5Gigabit Switch is a reliable, efficient and cost-effective solution for connecting network devices and providing high-speed data transmission. It is designed with a store-and-forward architecture and supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, and IEEE 802.3z network protocols, making it ideal for both enterprise and home networking applications. It also features a 10KB jumbo frame and 4K MAC address table, providing faster performance and improved reliability. With its wide operating temperature range from 0°C~45°C, the 2.5Gigabit Switch is suitable for various environments, making it an ideal choice for indoor applications. Thanks to the 2.5Gigabit Switch's PoE technology, it can be used to power up devices in a wide range of areas, such as surveillance, VoIP, IPTV, and more. It is also an ideal solution for connecting IP cameras, wireless access points, and other network devices in a variety of different environments.

Customization:
- Brand Name: Sirivision
- Place of Origin: Shenzhen, China
- Operating Temperature: 0°C~45°C
- LED Indicators: Power, Link/Act
- Number of Ports: 4 2.5G RJ45 PoE and 2 10G SFP+
- Product Name: 2.5 Gigabit Switch
- Jumbo Frame: 10KB
The Sirivision 2.5 Gigabit Switch is the perfect choice for those who need a reliable and efficient switch for their 2.5 Gb Ethernet needs. This 2.5 g POE switch provides 6 ports and a jumbo frame of 10KB. It is also equipped with LED indicators for power and link/act. It is designed for a temperature range of 0°C to 45°C, making it an ideal choice for environments where temperature can vary. With its superior design and features, the Sirivision 2.5 Gigabit Switch is sure to meet all your networking needs.
FAQ:
Q1: What is Sirivision 2.5 Gigabit Switch?
A1: Sirivision 2.5 Gigabit Switch is a networking switch produced by Sirivision, a Shenzhen-based company in China. It is designed to provide high-speed, secure, and reliable data transmission for data centers, enterprises, and other networks.
Q2: What are the features of Sirivision 2.5 Gigabit Switch?
A2: Sirivision 2.5 Gigabit Switch features 2.5Gbps of non-blocking switching capacity, up to 6 ports, low latency, advanced QoS features, and secure data transmission.
Q3: What types of ports does Sirivision 2.5 Gigabit Switch have?
A3: Sirivision 2.5 Gigabit Switch has 4 2.5G RJ45 ports and 2 10G SFP+ ports.
Q4: What is the maximum switching capacity of Sirivision 2.5 Gigabit Switch?
A4: Sirivision 2.5 Gigabit Switch has a maximum switching capacity of 2.5Gbps.
Q5: How secure is the data transmission of Sirivision 2.5 Gigabit Switch?
A5: Sirivision 2.5 Gigabit Switch is designed with advanced security features to ensure secure data transmission. It includes 802.1X authentication, DHCP snooping, port isolation, and more.
