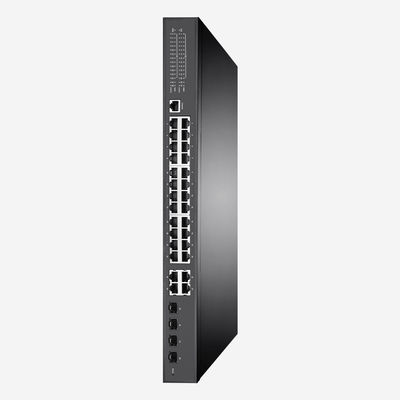

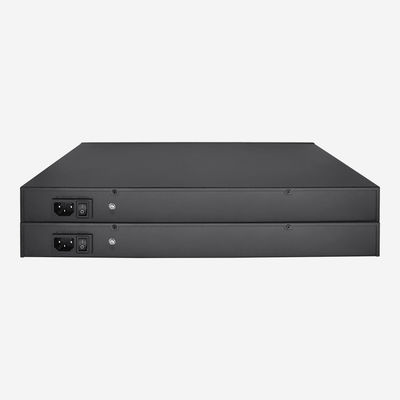

24G Poe Ports Layer 2+ Gigabit Switch With 4G SFP 1 Console Port
Place of Origin | Shenzhen,China |
---|---|
Brand Name | Sirivision |
Certification | CE, ROHS, FCC, UKCA |
Model Number | SR-SG3428FCP |
Minimum Order Quantity | 20 |
Price | Negotiation |
Packaging Details | 1pc in box, 1pc Warranty Card in box. |
Delivery Time | 5-8 work days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 50000pcs Per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xMAC Address Table | 8K | Switching Capacity | 56Gbps |
---|---|---|---|
Material | Steel | Packet Forwarding Rate | 41.664Mpps |
Total Power | 400 W | PoE Port | 24pcs |
Highlight | 28G Poe Layer 2+ Gigabit Switch,4G SFP Layer 2+ Gigabit Switch,28G Poe Ports Layer 2+ Switch |
Layer 2+ Gigabit Switch With 24G Poe Ports, 4G SFP And 1 Console SR-SG3428FCP
L2+ Managed Gigabit PoE Switch With 24 PoE Ports, 4 SFP Fiber Ports And 1 Console Port
Description Of The Poe Switch 24 Port:
SR-SG3428FCP is a Layer 2 plus managed PoE switch equipped with 24 10/100/1000M adaptive PoE ports, 4 10/100/1000M SFP fiber ports, 4 Combo ports and one Console port. It follows IEEE 802.3az (Energy Efficient Ethernet) standard, which greatly reduces the power consumption of the device and is green and energy efficient. Fully considering the low noise requirement of user environment, it adopts fanless design and monitors the temperature in the system in real time, which can effectively reduce noise pollution.
Features Of The Un Managed Switch:
- Provides 24 10/100/1000Mbps RJ45 ports, 4 Gigabit SFP fiber port, 4 Combo ports and 1 console port.
- 24 PoE ports support IEEE802.3af/at, per poe port up to 30W, and 400W total power.
- Supports IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x , IEEE802.3az, IEEE802.3af, IEEE802.3at.
- Supports MAC address auto-learning and auto-aging.
- Supports perfect SNMP management, support VCT, DDM (Digital Diagnostic Monitoring) and other features, quickly detect network faults and reduce the difficulty of operation and maintenance.
- Supports common QinQ and flexible QinQ technologies, giving users maximum freedom to configure QinQ policies.
Product Spectification Of The 24 Port Poe Managed Switch:
SR-SG3428FCP | |
Power Supply | AC100~240V 50/60Hz |
Standards | IEEE 802.3i,802.3u,802.3ab,802.3x,802.3at,802.3af,802.3z |
Ports | 24 10/100/1000Mbps RJ45 ports, 4 Gigabit SFP fiber ports, and 1 Console port |
Indicators | Electrical port indicators, sfp fiber port indicators, power input indicator, system running indicator. |
Network medium |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X:MMF,SMF |
Dimensions | 440*290*44.5 mm |
PoE port | 24 802.3at/af standard POE |
PoE Pin Definition | 1/2(+),3/6(-) |
PoE power | 380 W |
Total power | 400 W |
Transfer Method | Store-and-Forward |
MAC Address Table | 8K |
Switching Capacity | 56Gbps |
Packet Forwarding Rate | 41.664Mpps |
Packet Buffer | 4.1Mbit |
Jumbo Frame | 10KBytes |
Environment | Operating Temperature: 0℃ ~45℃ (0℉~113℉) Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
Soft Features:
L3 Features | IPV4/IPV6 | ||||
Dynamic ARP | |||||
L2 Features | Flow Control | ||||
802.3x (full duplex) | |||||
Back pressure (half duplex) | |||||
Link aggregation | |||||
Spanning Tree | 802.1D (STP),802.1w (RSTP),802.1s (MSTP) | ||||
ERPS,BPDU Filtering | |||||
Automatic Edge Port | |||||
VLAN | 8 groups Protocol-based VLAN | ||||
VLAN Translation, VLAN VPN, GVRP | |||||
256 MAC-based VLAN, Private VLAN | |||||
Voice VLAN | |||||
Monitoring VLANs | |||||
IEEE802.1q VLAN,QinQ (IEEE 802.1ad) | |||||
4096 static VLANs | |||||
multicast | IGMP Snooping(v1,v2,v3) | ||||
MLD Snooping V1/V2 | |||||
Multicast VLAN Registration (MVR) | |||||
QoS | 8 priority queues per port | ||||
Support port-based and VLAN-based PolicyMap binding | |||||
TOS, DSCP, 802.1p priority field rewrites | |||||
Support flow classification based on ACL flow, COS, TOS, DSCP | |||||
Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP | |||||
ACL | Custom ACL, MAC-based, IP-based, port-based | ||||
Security Features | IEEE 802.1X certification, Guest VLAN, Port-based, Host-based, MAC Auth, Web Auth | ||||
Storm Control, Ports Security, Port Isolation, HTTPS | |||||
DHCP Snooping, CPU Defence Engine, DoS Prevention, 256 IP Source Guard | |||||
Dynamic ARP Check | |||||
IP, MAC, Port Binding | |||||
Dynamic VLAN Assignment, Management Access | |||||
BPDU,SSH v1/v2, 8 TACACS+, 8 RADIUS | |||||
Management | Supported CLI, Console, SNMP v1/v2/V3, Web | ||||
Diagnosis | mirror Many-to-One | ||||
UDLD,System Log (RFC3164) | |||||
System Diagnosis, Network Diagnosis |
