52Gbps 24 Port Layer 2+ Switch FCC UKCA Managed Gigabit Switch
Place of Origin | Shenzhen,China |
---|---|
Brand Name | Sirivision |
Certification | CE, ROHS, FCC, UKCA |
Model Number | SR-SG3226F |
Minimum Order Quantity | 20 |
Price | Negotiation |
Packaging Details | 1pc in box, 1pc Warranty Card in box |
Delivery Time | 5-8 work days |
Payment Terms | L/C, T/T, Western Union, MoneyGram |
Supply Ability | 50000pcs Per Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xConsole Port | 1pcs | MAC Address Table | 8K |
---|---|---|---|
Packet Forwarding Rate | 38.688Mpps | Switching Capacity | 52Gbps |
Ethernet Port | 27pcs | Input Voltage | AC100~240V |
High Light | 24 Port Layer 2+ Switch FCC UKCA,52Gbps 24 Port Layer 2+ Switch,FCC UKCA Managed Gigabit Switch |

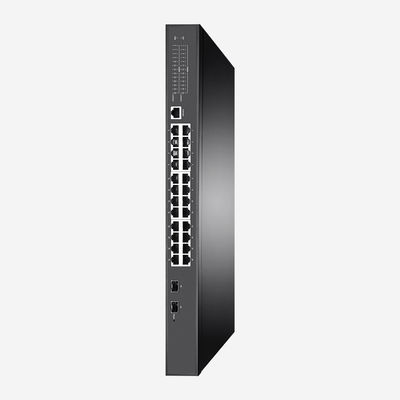

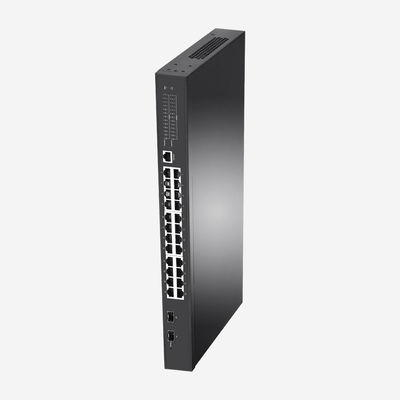

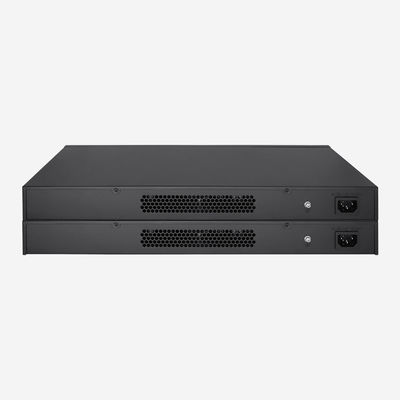

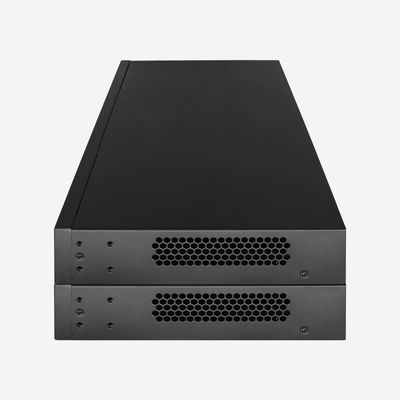

Layer 2+ Managed Gigabit Switch With 24 RJ45 Ports, 1 Console Port And 2SFP SR-SG3226F
L2+ Managed Gigabit Switch With 2 SFP Fiber And 24 Ethernet RJ45 Ports
Description Of The 24 Port Sfp Switch:
SR-SG3226F is a Layer 2+ managed switch equipped with 24 Gigabit RJ45 ports and 2G SFP ports. It supports port-based and VLAN-based source MAC address learning restriction, which effectively prevents user source MAC spoofing on device MAC table entries, causing normal users to fail to learn MAC table and flooding. It supports unified management of the entire network configuration and network management, which can simplify user operation and improve the reliability of deployment.
Features Of The Managed Gigabit Switch:
- Supports IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x , IEEE802.3az.
- Supports perfect SNMP management, support VCT, DDM (Digital Diagnostic Monitoring) and other features, quickly detect network faults and reduce the difficulty of operation and maintenance.
- Provides 24 10/100/1000Mbps RJ45 ports, 2 Gigabit SFP fiber ports and 1 console port.
- Support DHCP Snooping, DHCP Relay, Option 82, DHCP client.
- Support VLAN, ACL, ERPS ring network, RSTP/MSTP spanning tree, 802.1X certification, IPV6, SSL, SNMP, etc.
- It supports standard 802.1X authentication access, and at the same time supports extended 802.1X authentication access, which can effectively prevent IP conflicts and PC cloning, and realize extended and enhanced functions such as static IP address delivery.
Product Spectification Of The 24 Port Gigabit Switch Managed:
SR-SG3226F | |
Power Supply | AC100~240V 50/60Hz |
Standards | IEEE 802.3i,802.3u,802.3ab,802.3x,802.3z |
Ports | 24 x 10/100/1000Mbps RJ45 ports, 2 x 1000Mbps SFP ports, 1x Console port |
Indicators | Electrical port indicators, sfp fiber port indicators, power input indicator, system running indicator. |
Network medium |
10Base-T: UTP category 3, 4, 5 cable (maximum 100m) 100Base-Tx: UTP category 5, 5e cable (maximum 100m) 1000Base-T: UTP category 5e, 6 cable (maximum 100m) 1000Base-X:MMF,SMF |
Dimensions | 440*290*44.5 mm |
Transfer Method | Store-and-Forward |
MAC Address Table | 8K |
Switching Capacity | 52Gbps |
Packet Forwarding Rate | 38.688Mpps |
Packet Buffer | 4.1Mbit |
Jumbo Frame | 10KBytes |
Environment | Operating Temperature: 0℃ ~45℃ (0℉~113℉) Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
