DC 12V-57V 8 Port Industrial Unmanaged Ethernet Switch With 8 Gigabit RJ45 Ports
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | Sirivision |
| Certification | CE, ROHS, FCC, UKCA |
| Model Number | SR-SHG1008I |
| Minimum Order Quantity | 20 |
| Price | Negotiation |
| Packaging Details | 1pc in box, 1pc Warranty Card in box |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 50000pcs Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimension | 153 Mm *114 Mm *38 Mm | Jumbo Frame | 9K |
|---|---|---|---|
| MAC Address Table | 4K | Switching Capacity | 16Gbps |
| Forwarding Rate | 11.904Mpps | Transmission Rate | 10/100/1000Mbps |
| High Light | DC 12V Industrial Ethernet Switch,DC12V 8 Ports Gigabit Switch,8 RJ45 Ports Industrial Ethernet Switch |
||
Product Description

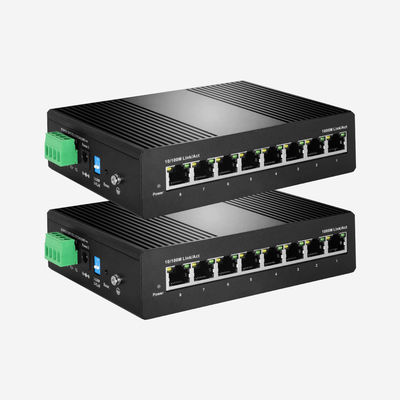

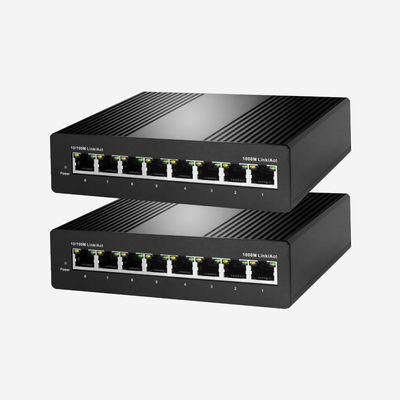

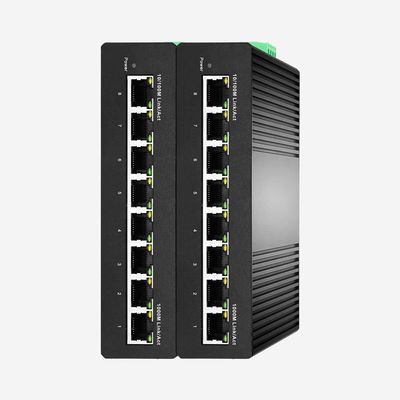

Industrial Ethernet Switch With 8 Gigabit RJ45 Ports SR-SHG1008I
Industrial Ethernet Switch With 8 Gigabit RJ45 Ports
Description Of The Best Unmanaged Switch:
The SR-SHG1008I is an industrial Ethernet unmanaged switch with eight 10/100/1000 Mbps Ethernet adaptive ports. Wide voltage input is DC 12V~57V.
Features Of The Industrial Ethernet Switch 8 Port:
- Provide 8 10/100/1000Mbps RJ45 ports.
- Support IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab.
- Aluminum alloy shell, sturdy and durable.

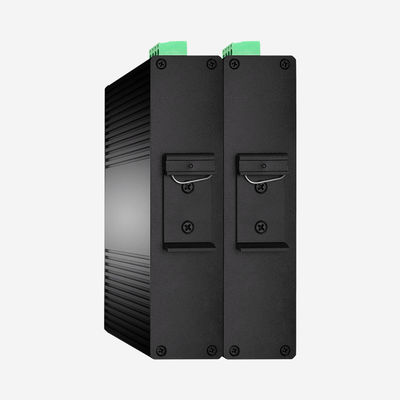

- Multiple mounting options, such as DIN rail mounting and wall mounting.
- Small size (153 mm *114 mm *38 mm), better adapted to industrial environments.
- Industrial grade working temperature is -40℃~75℃.
-
Product Name: Industrial Unmanaged Switch
-
Working Humidity: 0%-95%RH
-
Protection Level: IP30
-
Working Temperature: -40℃-75℃
-
Supports industrial Ethernet switch
-
Industrial Gigabit Ethernet switch with high performance
-
Robust and durable design for harsh industrial environments
-
Easy to install and configure
Product Spectification Of The Industrial Unmanaged Switch:
| SR-SHG1008I | |
| Power Supply | 12~ 57 V DC/ 3A(MAX) |
| Standards | IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3ab |
| Ports | 8×10/100/1000Mbps RJ45 ports |
| Indicators | 8 status indicators Link/ACT, power indicator |
| Forwarding Mode | Store and Forward(Full Wire Speed) |
| Dimensions | 153 mm *114 mm *38 mm |
| MAC Address Table | 4K |
| Switching Capacity | 16Gbps |
| Packet Forwarding Rate | 11.904Mpps |
| Installation | DIN-rail/wall mount |
| Environment | Operating Temperature: -40℃ — 75℃ (-40℉~167℉) Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Certification Standards_ EMS |
IEC/EN 61000-4-2,Level 4 IEC/EN 61000-4-3,Level 4 IEC/EN 61000-4-4,Level 4 IEC/EN 61000-4-5,Level 3 IEC/EN 61000-4-6,Level 3 IEC/EN 61000-4-8,Level 5 IEC/EN 61000-4-9,Level 5 IEC/EN 61000-4-10,Level 5 |
Product Application Of The Unmanaged Industrial Ethernet Switch:
