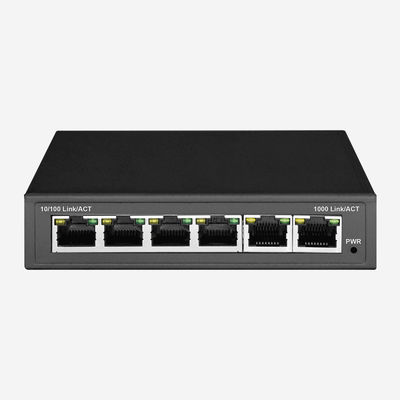

6 Gigabit RJ45 Auto Sensing Ports Smart POE Switch With 4 PoE Ports CE FCC ROHS UKCA

  • 6 Gigabit RJ45 Auto Sensing Ports Smart POE Switch With 4 PoE Ports CE FCC ROHS UKCA
Place of Origin Shenzhen，China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-SG2006P
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 6 Gigabit RJ45 Smart Poe Switch Manage Layer 2
PoE Ports 4 IEEE802.3at, IEEE802.3af Standard POE+ Material Steel Shell
Power Supply 44-57V DC Size 118 *94 *28 Mm
High Light

6 RJ45 Smart POE Switch

,

UKCA Smart POE Switch
Leave a Message
Product Description

6 Gigabit RJ45 Auto-Sensing Ports, Smart Poe Switch With 4 PoE Ports, CE, FCC, ROHS, UKCA SR-SG2006P



Easy Smart Full Gigabit PoE Switch With 6 10/100/1000M Ports





Description Of The 6 Port Poe Switch:



"SR-SG2006P" series is Sirivision's self-developed Gigabit Layer 2 managed Ethernet fiber PoE switch. This switch is equipped with 6 Gigabit RJ45 auto-sensing electrical ports and 4 PoE ports, all of which support full wire-speed forwarding.


The switch is equipped with 10/100/1000M auto-sensing RJ45 ports to meet the demand for high-speed broadband access and make full use of every megabit of broadband provided by the carrier. It is compatible with computers, printers, webcams, smart TV game consoles and other networking devices to better meet the network solution for home, business and commercial use.





Features Of The Smart Managed Switch:

  • Provide 6 10/100/1000Mbps RJ45 ports.
  • Support IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3at, 802.3af.
  • 4 POE ports support 802.3af/at, up to 30W per port, 60W total power.
  • Support desktop placement.
  • Support WEB, SNMP(V1/V2)management.
  • Support QoS, VLAN, STP/RSTP spanning tree.



Product Spectification Of The Web Smart Switch:

SR-SG2006P
Power Supply 44-57V DC
Standards IEEE 802.3i,802.3u,802.3ab,802.3x,802.3at,802.3af,802.3z
Ports 6 10,100,1000Mbps RJ45
Indicators 6 electrical port speed indicators, 6 electrical port link/act indicators, power input indicator
Network
medium		 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
1000Base-T: UTP category 5e, 6 cable (maximum 100m)
1000Base-X:MMF,SMF
Dimensions 118 * 94 * 28 mm
PoE port 4 802.3at/af standard POE
PoE Pin Definition 1/2(+),3/6(-)
Total power 60W
Transfer Method Store-and-Forward
MAC Address Table 4K
Switching Capacity 12Gbps
Packet Forwarding Rate 8.928Mpps
Packet Buffer 1.5Mbit
Jumbo Frame 9KBytes
Environment Operating Temperature: 0℃ ~45℃ (0℉~113℉)
Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing



Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
• Link Aggregation
- Supports static link aggregation
• Port Mirroring
• Cable Test
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs
• MTU/Port/802.1Q VLAN
Quality of Service
(QoS)		 • Support Port-based/802.1p/DSCP priority
• Support 4 priority queues
• Storm Control
• Rate Limit
Management

• Web-based Graphic User Interface (GUI)

• Smart-Configuration Utility
Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS



Product Application:

6 Gigabit RJ45 Auto Sensing Ports Smart POE Switch With 4 PoE Ports CE FCC ROHS UKCA 0
