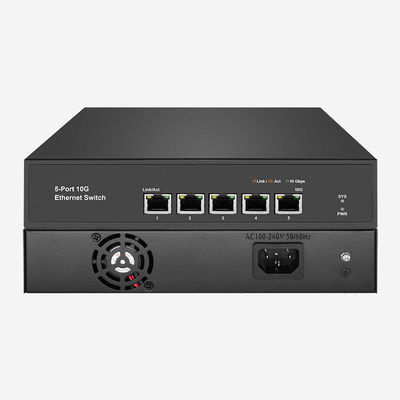

10g Speed Rack Mountable 5 RJ45 10G Unmanaged Switch With Store-And-Forward And Internal Power Supply

Place of Origin Shenzhen,China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-ST1005
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC 100-240V 50/60Hz Mounting Options Rack-mountable
Jumbo Frame Support 12KBytes Operating Temperature 0°C To 45°C
Warranty 1 Year Forwarding Rate 74.4Mpps
Switching Capacity 100Gbps
Highlight

Rack Mountable 10G Unmanaged Switch

,

5 RJ45 10G Unmanaged Switch

,

Store-And-Forward 10G Unmanaged Switch

Leave a Message
Product Description

Product Description:

One of the key features of this switch is its Jumbo Frame Support, which allows for larger data packets to be transmitted across the network. This is particularly useful for applications that require high-bandwidth, such as video streaming or large file transfers.



In addition, this switch has a humidity tolerance of 10% to 90% non-condensing, making it suitable for use in a wide range of environments. Its internal power supply ensures that it can operate reliably and efficiently, without the need for external power sources.



The 10G Unmanaged Office Switch has a switching capacity of 100Gbps, which means that it can handle large amounts of data traffic without experiencing any lag or delay. Its forwarding rate of 74.4Mpps ensures that data is transmitted quickly and efficiently, ensuring that your network is always running at optimal speed.



If you need a reliable and efficient switch for your office or business, the 10G Unmanaged Office Switch is an excellent choice. Its compact and durable design makes it easy to install and maintain, while its high-speed connectivity ensures that your network is always running at optimal speed.



Overall, the 10G Unmanaged Desktop Ethernet Switch is a highly reliable and efficient switch that is perfect for small to medium-sized businesses. Its Jumbo Frame Support, humidity tolerance, switching capacity, and forwarding rate make it an excellent choice for any business that requires high-speed connectivity for their network infrastructure.



Features:

  • Product Name: 10G Unmanaged Switch
  • Operating Temperature: 0°C To 45°C
  • Switching Capacity: 100Gbps
  • Jumbo Frame Support: 12K
  • Dimensions: 218 X 165 X 44 Mm
  • 10G Unmanaged Office Switch
  • 10G Unmanaged Rackmount Switch
  • 10Gbps Unmanaged Ethernet Switch


Technical Parameters:

Technical Specification Value
Power Supply AC 100-240V 50/60Hz
Standards IEEE 802.3i,802.3u,802.3ab,802.3x,802.3az
Number of Fans 1
Ports 5 x 100M/1000M/2500M/5G/10Gbps RJ45 ports
Mounting Method Rack mounting
Network Media (Cable)

100BASE-TX:
UTP/STP of Cat. 5 or above (MAX 100 m)

1000BASE-T:
UTP/STP of Cat. 5e or above (MAX 100m)

2.5GBASE-T:
UTP/STP of Cat. 5e or above (MAX 100m)

5GBASE-T:
UTP/STP of Cat. 5e or above (MAX 100m)

10GBASE-T:
UTP of Cat 6 (MAX 55m) or STP of Cat 7 (MAX 100m)

VLAN Support Yes
Dimensions 218*165*45 mm
Port Count 5
Transfer Method Store-and-Forward
MAC Address Table 16K
Switching Capacity 100Gbps
Packet Forwarding Rate 74.4Mpps
Packet Buffer 12Mbit
Jumbo Frame 12KBytes
Environment Operating Temperature: 0℃ ~45℃ Storage Temperature: -40℃ ~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing





Applications:

Whether you're setting up a new office or upgrading your existing network infrastructure, the Sirivision 10G Unmanaged Switch is an ideal choice. It is easy to install, requires no configuration, and provides reliable and stable performance.

Here are some of the scenarios where the Sirivision 10G Unmanaged Switch can be used:

  • High-speed data transfer: The 10Gbps Unmanaged Ethernet Switch allows for high-speed data transfer, making it perfect for businesses that need to transfer large files quickly. This switch is ideal for businesses that deal with data-intensive applications such as video editing, animation, and large-scale database management.
  • Small and medium-sized businesses: The 10G Unmanaged Rackmount Switch is perfect for small and medium-sized businesses that need a reliable and affordable network solution. It is easy to install and requires no configuration, making it ideal for businesses that do not have an IT department.
  • Office settings: The 10G Unmanaged Office Switch is ideal for office settings where there are multiple devices that need to be connected to the network. This switch allows for fast and reliable connectivity, making it perfect for businesses that need to transfer data quickly and efficiently.

The Sirivision 10G Unmanaged Switch is built to last, with a 1-year warranty. It also supports Jumbo Frame, which allows for larger data packets to be transmitted, improving network performance.

Overall, the Sirivision 10G Unmanaged Switch is a reliable and high-performance Ethernet switch that is ideal for businesses that need fast and reliable connectivity. Its easy installation and configuration-free setup make it an ideal choice for businesses that do not have an IT department.

10g Speed Rack Mountable 5 RJ45 10G Unmanaged Switch With Store-And-Forward And Internal Power Supply 0



Customization:

Customize your Sirivision 10G Unmanaged Office Switch to meet your specific needs with our product customization services. Our switches are made in Shenzhen, China and can operate in temperatures ranging from 0°C to 45°C. This 10G Unmanaged Desktop Ethernet Switch has a forwarding rate of 74.4Mpps. It features an internal power supply.



FAQ:

Q: What is Sirivision's 10G Unmanaged Switch?

A: Sirivision's 10G Unmanaged Switch is a high-performance, cost-effective, and easy-to-use network switch that allows you to expand your network capacity and speed.

Q: What are the key features of Sirivision's 10G Unmanaged Switch?

A: Sirivision's 10G Unmanaged Switch offers 10 Gigabit Ethernet ports, plug-and-play installation, auto-negotiation of network speed and duplex mode, and support for Jumbo Frames.

Q: Where is Sirivision's 10G Unmanaged Switch manufactured?

A: Sirivision's 10G Unmanaged Switch is manufactured in Shenzhen, China.

Q: What is the warranty for Sirivision's 10G Unmanaged Switch?

A: Please refer to the warranty information provided with the product for details on the warranty for Sirivision's 10G Unmanaged Switch.
