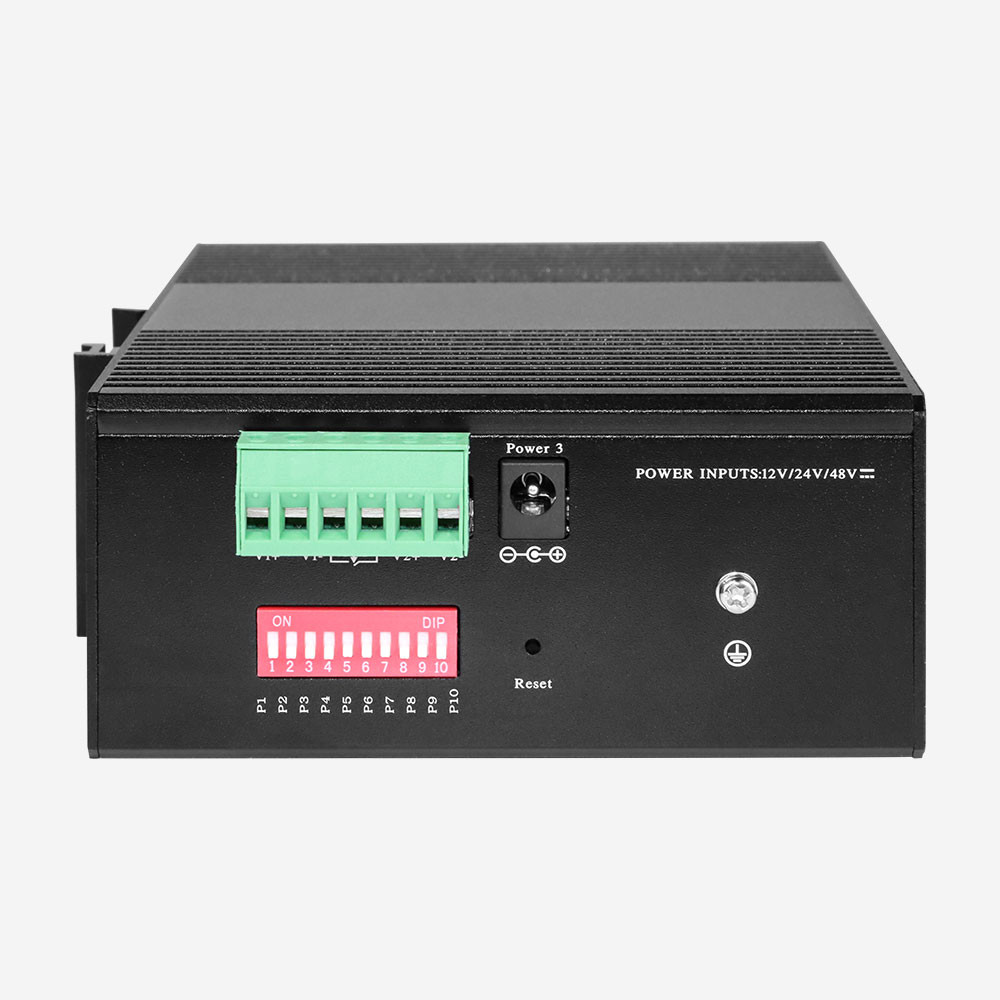

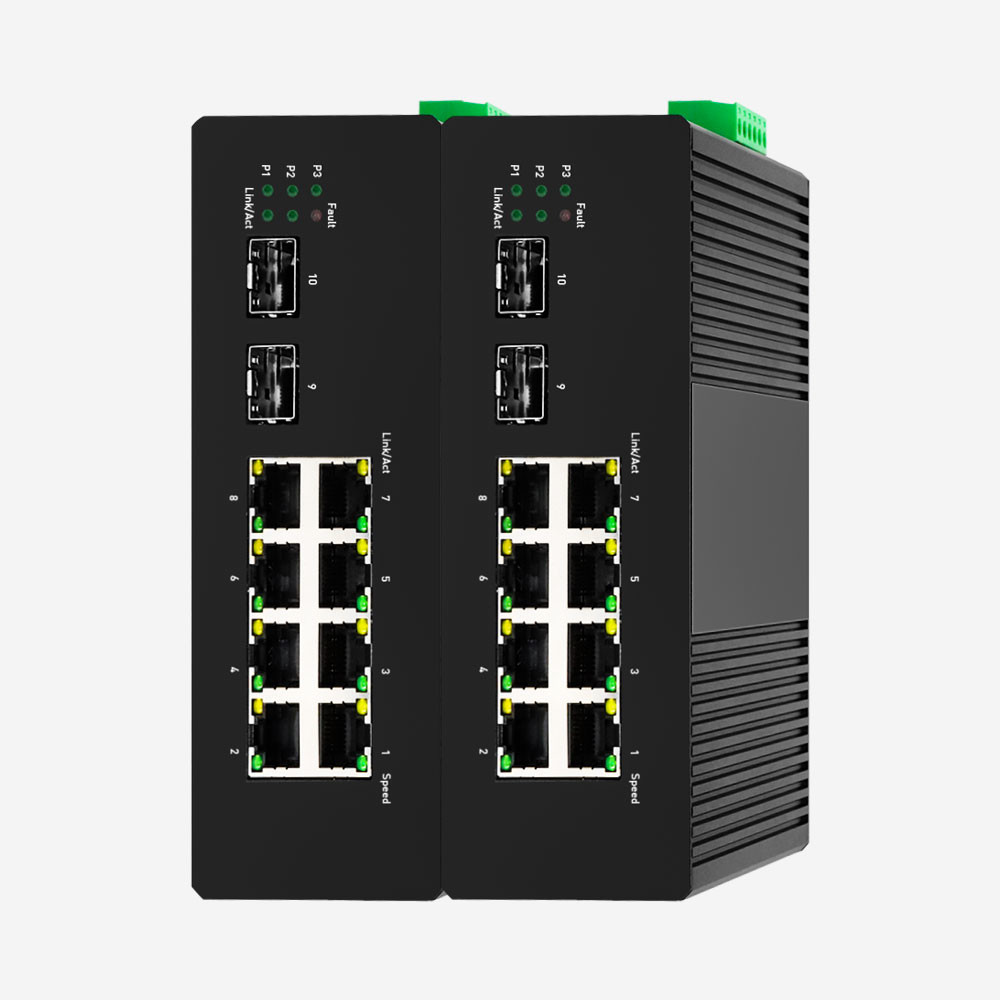

Reliable Alarm Gigabit Industrial Managed Switch Three Power Inputs Redundant Backup

Place of Origin Shenzhen,China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-SG2210FI
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Protection Level IP30 Connection Type Wired
Power Input 12~ 57 VDC, 2.5A(MAX) Mac Address Table 4K
Switching Capacity 20Gbps Installation Rail/Wall Mount
High Light

Alarm Gigabit Industrial Managed Switch


Industrial Managed Switch with Redundant Backup

Leave a Message
Product Description

Product Description:

Industrial Smart Switch is a highly reliable and cost-effective industrial managed Ethernet switch. With connection type of wired, it provides power supply of DC 12~ 57 V, and protection level of IP30. It also has a rated current of 2A and switching capacity of 20Gbps, making it ideal for industrial applications. As one of the leading industrial Ethernet switch manufacturers, our switch is designed to provide a secure and reliable network connection in harsh industrial environments.

The industrial managed switch provides port-level control and multiple security management functions. It supports up to 20Gbps switching capacity, allowing faster data transmission and processing. It also features comprehensive security measures such as IEEE 802.1x port-based authentication, MAC address filtering, and broadcast storm control to protect against malicious attacks. The rugged design and high reliability make it suitable for various industrial applications.

The industrial managed switch is an ideal choice for industries requiring secure and reliable network connection. It provides excellent performance, fast data transmission speed, and robust security measures for the most demanding industrial applications. If you are looking for an industrial managed switch, we are your perfect choice.



  • Product Name: Industrial Smart Switch
  • Rated Current: 2.5A
  • Input Voltage: 12V-57V
  • Power Supply: DC
  • Size: 155mm*114.1mm*51.7mm
  • Industrial Gigabit Switch
  • Industrial Managed Switch
  • Industrial Gigabit Switch Managed
  • Industrial Ethernet Switch

Technical Parameters:

Parameter Details
Power Supply DC
Forwarding Rate 14.88Mpps
MAC Address Table 4K
Working Temperature -40℃-75℃
Installation DIN-rail/wall mount
Switching Capacity 20Gbps
Size 155*114.1*51.7 mm
Protection Level IP30
Material Aluminum
Environment Operating Temperature: -40℃ ~75℃ (-40℉~167℉) Storage Temperature: -40℃ ~85℃ (-40℉ ~185℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing


Soft Features:

L2 Switching Features • IGMP Snooping
- Supports IGMP Snooping
- Supports 128 groups
• Link Aggregation
- Supports static link aggregation
- Supports 8 groups of aggregation, up to 4 ports per group
• Port Mirroring
- One-to-one
- Many-to-Many
• Support port isolation, port grouping
VLAN • Supports up to 32 VLANs (out of 4K VLAN IDs)
• Supports Port VLAN and 802.1Q VLAN
• Supports Port-based/802.1p/DSCP priority
Quality of Service
• Support 4 priority queues
• Port Speed Limit
• Storm Control
Management • Support WEB network management, IP:
User name and password is:admin
Ethernet Protocols • IEEE 802.3 10BASE-T
• IEEE 802.3u 100BASE-TX/FX
• IEEE 802.3ab 1000BASE-T
• IEEE 802.3x Flow Control
• IEEE 802.1q VLANs/VLAN tagging
• IEEE 802.1p QoS




Industrial Smart Switch Applications and Scenarios

The Sirivision Industrial Smart Switch is an advanced, robust, and reliable industrial managed switch that supports wired connections, ranging from 12V-57V in voltage and can switch up to 20Gbps in capacity. It is suitable for a wide variety of industrial settings, including industrial managed switch, and industrial fiber switch scenarios. It is available with DC power sources.

Sirivision's Industrial Smart Switch has a wide range of applications in industrial settings, such as factories, and construction sites. It can be used to control and monitor a wide variety of devices, such as robots, machinery, and other automated systems. It also provides remote control and manual control capabilities, allowing users to easily manage and monitor their devices from a distance. It is also highly secure, providing data encryption and authentication capabilities to help protect data and systems.

The Sirivision Industrial Smart Switch is the perfect choice for industrial settings, providing reliable and secure switching and control capabilities. It is designed to be durable and efficient, with a long lifespan and low power consumption. It is also easy to install and configure, providing a user-friendly solution for managing and monitoring systems in industrial settings.

Reliable Alarm Gigabit Industrial Managed Switch Three Power Inputs Redundant Backup 0


Sirivision Industrial Smart Switch

Brand Name: Sirivision
Place of Origin: Shenzhen,China
Working Humidity: 5%-95%RH
Switching Capacity: 20Gbps
Power Supply: DC 12~ 57 V
Working Temperature: -40℃-75℃

Sirivision is one of the leading industrial ethernet switch manufacturers in China. Our industrial smart switch is designed for the most demanding industrial applications, with a switching capacity of 20Gbps, power supply of DC, working temperature of -40℃-75℃, and working humidity of 5%-95%RH. It is also an industrial managed Ethernet switch, ideal for industrial automation.
