SNMP V1 V2 V3 Industrial PoE Switch Full Gigabit Managed 130W
|Place of Origin||Shenzhen，China|
|Certification||CE, ROHS, FCC, UKCA|
|Minimum Order Quantity||20|
|Packaging Details||1pc in box, 1pc Warranty Card in box|
|Delivery Time||5-8 work days|
|Payment Terms||L/C, T/T, Western Union, MoneyGram|
|Supply Ability||50000pcs Per Month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||4GE 2SFP Industrial Layer 2+ Managed Gigabit PoE Switch||Total Power||130W|
|Switching Capacity||12Gbps||Input Voltage||DC 44-57V|
|Safety Class||IP30||Jumbo Frame||10K|
SNMP V1 V2 Industrial PoE Switch,
130W Industrial PoE full managed switch,
130W full managed Industrial PoE Switch

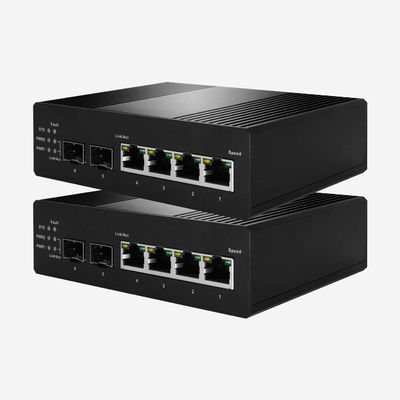

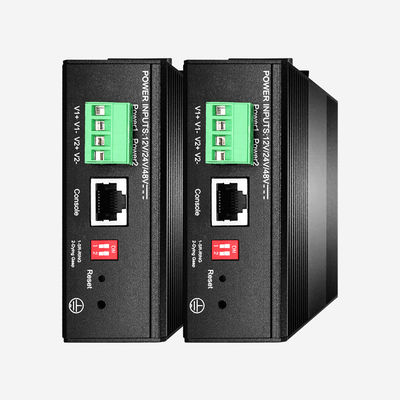

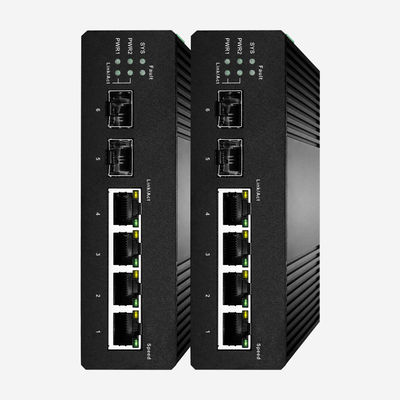

SNMP V1 V2 V3 Layer 2+ PoE Switch With 4 PoE Ports, And 2 SFP Fiber Ports SR-SHG3206FPI
4 PoE Ports And 2 SFP Ports Industrial L2+ Managed Gigabit PoE Switch
Description Of The Din Rail Mounted Switch:

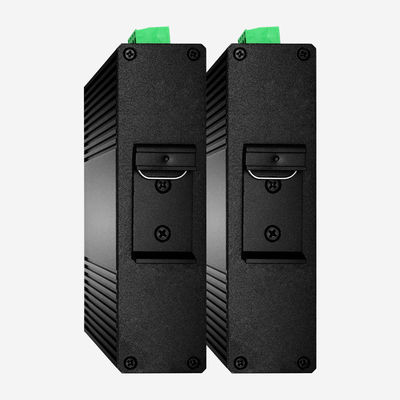

The SR-SHG3206FPI is a full Gigabit managed industrial PoE switch with four 10/100/1000M PoE ports and two 10/100/1000M SFP fiber ports. 4 electrical ports can support IEEE 802.3af/at standard PoE power supply with a total power of 130W. It can be easily installed on DIN rail or wall mount, and the installation method can be chosen flexibly according to the demand, making the use of industrial Ethernet switch easy and reliable. Designed strictly according to -40℃~75℃ working temperature, selected industrial-grade devices and natural heat dissipation ensure the equipment works stably for a long time in this temperature range to meet various harsh environments. High standard electromagnetic anti-interference protection design, adapt to various harsh electromagnetic environments such as electric power and industrial plants.
Features Of The Rugged Poe Switch:
- Provide 4 10/100/1000Mbps RJ45 ports, 2 SFP fiber ports.
- Support IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3x, IEEE802.3z, IEEE802.3ab,IEEE802.3af, IEEE802.3at.
- 4 PoE ports support 802.3af/at, per PoE power port up to 30W Poe budget.
- Support 8K MAC addresses; static MAC addresses, filtered MAC addresses, dynamic MAC binding and other address table management functions.
- Support STP/RSTP/MSTP Spanning Tree Protocol to eliminate Layer 2 loops and achieve link backup.
- All series supports Ethernet port and SFP port combination, which enables users to flexibly build networking to meet the needs of various scenarios.
Product Spectification Of The Rugged Ethernet Switch:
|Power Supply||44~ 57 VDC/ 3A(MAX)|
|Standards||IEEE 802.3, 802.3i, 802.3u, 802.3x, 802.3z, 802.3ab, 802.3af, 802.3at|
|Ports||4×10/100/1000Mbps RJ45 ports+2×SFP ports|
|Indicators||Speed 1000M (green), network Indicator: Link (yellow), SFP Indicator: L/A (green)|
|Ethernet Port Feature||10/100/1000BaseT (X) automatic detection, full / half duplex MDI/MDI-X adaptive|
|SFP Port Characteristic||Gigabit SFP optical fiber interface, default matching optical modules, need to
buy separately, (optional order mode / multi-mode, single fiber / double fiber
|Forwarding Mode||Store and Forward(Full Wire Speed)|
|Dimensions||136 mm *108 mm *38.5 mm|
|PoE port||4 802.3at/af standard POE|
|Max / Average Power Port||30W per port|
|Power Consumption||Standby:<10W(NOT PoE);Full load:<130W(with PoE)|
|MAC Address Table||8K|
|Packet Forwarding Rate||8.928Mpps|
|Net /Gross Weight||<1.2kg / <1.5kg|
|Warranty||3 years , lifelong maintenance|
|Environment||Operating Temperature: -40℃ — 75℃ (-40℉~167℉)
Storage Temperature:-40℃ — 85℃ (-40℉ ~185℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Product Application Of The Rugged Switch:
