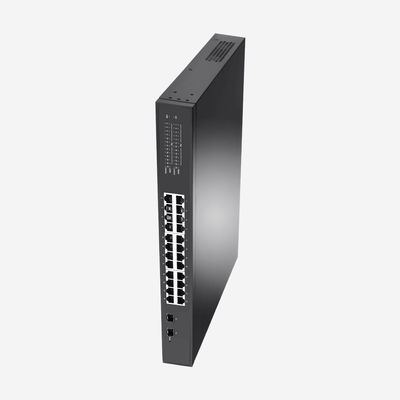

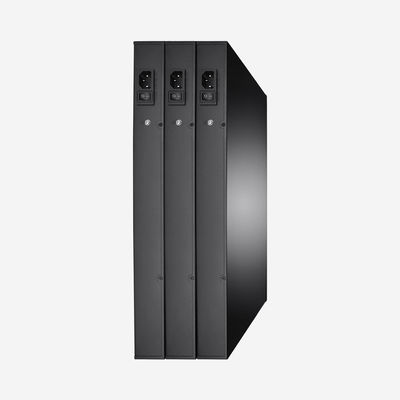

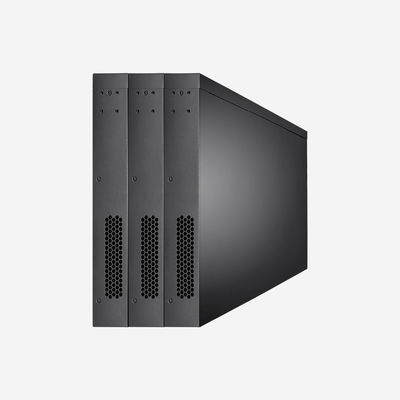

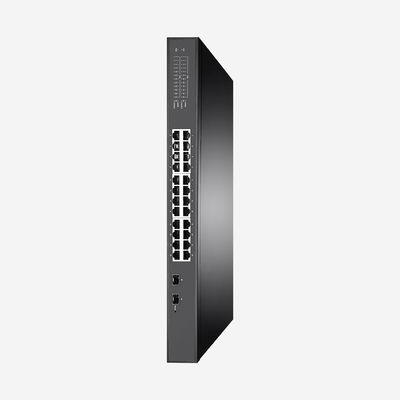

400W 24 Port Unmanaged PoE Switch With 2 SFP Ports SR-SG1226FP
| Place of Origin | Shenzhen，China |
|---|---|
| Brand Name | Sirivision |
| Certification | CE, ROHS, FCC, UKCA |
| Model Number | SR-SG1226FP |
| Minimum Order Quantity | 20 |
| Price | Negotiation |
| Packaging Details | 1pc in box, 1pc Warranty Card in box |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union, MoneyGram |
| Supply Ability | 50000pcs Per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 24 Port Gigabit Ethernet Unmanaged PoE Switch | Size | 440*290*44.5 Mm |
|---|---|---|---|
| Ethernet PoE Port | 24 | Forwarding Rate | 38.688Mpps |
| Switching Capacity | 52Gbps | RJ45 Port | 24 |
| High Light | 400W 24 Port Unmanaged PoE Switch,400W Unmanaged 24 Port PoE Switch,2 SFP Ports Unmanaged PoE Switch |
||
Product Description
400 W Gigabit Unmanaged 24 Port PoE Switch With 2 SFP Ports SR-SG1226FP
Gigabit Unmanaged PoE Ethernet Switch With 24G RJ45 Ports
Description Of The Best Unmanaged Switch:
The SR-SG1226FP is an unmanaged Ethernet switch with 24 10/100/1000M adaptive RJ45 ports and 2 Gigabit SFP ports. It has a total power of up to 400 W, a conversion capacity of 52G, and a forwarding rate of 38.688 Mpps. It can operate at 0°C ~ 45°C (0°F ~ 113°F) and store at -40°C ~ 70°C (-40°F ~ 158°F), which can adapt to most environments, and it is easy to use, plug-and-play, and requires no management.
Features Of The Unmanaged Poe Switch:
- Support 24 Gigabit RJ45 ports, support IEEE 802.3af/at standard PoE power supply, single port maximum power supply up to 30W.
- All ports have wire-speed forwarding capability.
- 19-inch standard rack mount,plug-and-play, no management, rack mountable.
Product Spectification Of The Unmanaged Network Switch:
| SR-SG1226FP | |
| Power Supply | AC100~240V 50/60Hz |
| Standards | IEEE 802.3,802.3u,802.3ab,802.3x,802.3at,802.3af,802.3z |
| Ports | 24 10/100/1000Mbps RJ45 ports, 2 Gigabit sfp fiber ports |
| Indicators |
Electrical port indicators, sfp fiber port indicators, power input indicator, system running indicator. |
| Dimensions | 440*290*44.5 mm |
| PoE port | 24 802.3at/af standard POE |
| PoE Pin Definition | 1/2(+),3/6(-) |
| PoE power | 380 W |
| Total power | 400 W |
| Transfer Method | Store-and-Forward |
| MAC Address Table | 8K |
| Switching Capacity | 52Gbps |
| Packet Forwarding Rate | 38.688Mpps |
| Packet Buffer | 4.1Mbit |
| Jumbo Frame | 10KBytes |
| Environment | Operating Temperature: 0℃ ~45℃ (0℉~113℉) Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
Product Application Of The 24 Port Poe Switch Unmanaged:
