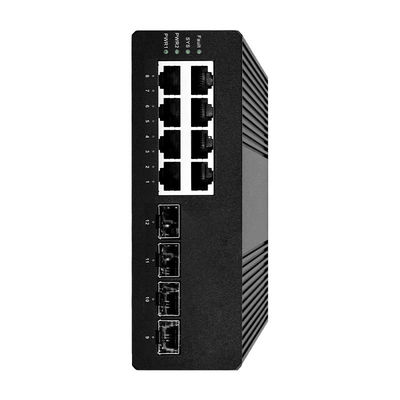

Reliable 10gb Ethernet Switch DIN Rail/Wall Mount Form Factor And Seamless Connectivity

  • Reliable 10gb Ethernet Switch DIN Rail/Wall Mount Form Factor And Seamless Connectivity
Place of Origin Shenzhen，China
Brand Name Sirivision
Certification CE, ROHS, FCC, UKCA
Model Number SR-ST3412FI
Minimum Order Quantity 20
Price Negotiation
Packaging Details 1pc in box, 1pc Warranty Card in box
Delivery Time 5-8 work days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 50000pcs Per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Security 802.1X, SSH, SSL, ACLs Port Speed 10Gbps, 10/100/1000Mbps
Product Name Industry 10gb Layer 3 Switch Warranty 3 Years
QoS Yes Form Factor DIN-Rail/Wall Mount
High Light

Reliable 10gb Ethernet Switch

,

DIN Rail 10gb Ethernet Switch
Leave a Message
Product Description

Product Description:

The 10gb Layer 3 Ethernet Switch is a high-performance, industry network switch designed to meet the most demanding requirements. It is a perfect solution for industrial environment. The switch features 10 Gigabit Ethernet ports, power supply with DC 12V~57V support, VLAN support, and redundant power supply for high availability. It is designed for easy installation and implementation, and also provides an intuitive graphical user interface for easy management. This switch is ideal for layer 3 networks, providing advanced features such as traffic prioritization, QoS, IPv4/IPv6 routing, and security. The switch also supports multiple form factors, including desktop, Din-rail mounting, and wall-mountable.



Features:

  • Product Name: Industry 10gb Layer 3 Switch
  • Power Supply: DC 12V~57V
  • QoS: Yes
  • Layer 3 Ethernet Switch
  • 10 Gigabit Network Switch
  • 10gb Ethernet Switch


Technical Parameters:

Parameter Value
Power Supply 12V~57V DC
Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3x
Ports 8×10/100/1000Mbps RJ45 ports+4×10Gbps SFP+ slots
Indicator Link/Act (green), Power Indicator: green
Network Media (Cable) 10Base-T: UTP category 3, 4, 5 cable (MAX 100m) 100Base-Tx: UTP category 5, 5e cable (MAX 100m) 1000Base-T: UTP category 5e, 6 cable (MAX 100m) 10GBase-T:UTP category 6A cable (MAX 100m)
Warranty 3 Year
Dimensions 149.2 mm *122 mm *50 mm
Transfer Method Store-and-Forward
MAC Address Table 16K
Switching Capacity 128Gbps
Packet Forwarding Rate 71.424Mpps
Packet Buffer 12Mbit
Mounting Method DIN-Rail/Wall Mount
Environment

Operating Temperature: 0℃ ~45℃ (0℉~113℉)

Storage Temperature: -40℃ ~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~95% non-condensing



Soft Features:

L3 Features IPV4/IPV6
Dynamic ARP
L2 Features Flow Control
802.3x (full duplex)
Back pressure (half duplex)
Link aggregation
Spanning Tree 802.1D (STP),802.1w (RSTP),802.1s (MSTP)
ERPS,BPDU Filtering
Self-loop detection
Automatic Edge Port
VLAN Port based VLAN(4k)
MAC address-based VLANs
protocol based VLAN
Voice VLAN
Monitoring VLANs
IEEE802.1q VLAN,QinQ (IEEE 802.1ad),GVRP
4096 static VLANs
multicast IGMP Snooping(v1,v2,v3)
Multicast VLAN, 1024 multicast groups
MLD Snooping V1/V2
Multicast VLAN Registration (MVR)
Industrial Ring Network ERPS Ring<20ms
QoS 8 priority queues per port
TOS, DSCP, 802.1p priority field rewrites
Queue Scheduling WRR,WFQ,WRR+SP, WFQ+SP
ACL L2/L3/L4, MAC-based, IP-based, port-based, VLAN-based
Security Features IEEE 802.1X certification
Storm Control
DHCP Snooping
Dynamic ARP Check
BPDU,SSH v1/v2
Management Supported CLI, Console, SNMP v1/v2/V3, Web, RMON management
Diagnosis mirror Many-to-One
UDLD,System Log (RFC3164)
System Diagnosis,Port Diagnostics,Network Diagnosis



Applications:

Sirivision 10Gb Layer 3 Switch is the perfect choice for industrial environment that need high performance, reliability, and security. This switch, designed and manufactured in Shenzhen, China, provides 10 Gigabit Ethernet connectivity with a web-based GUI, CLI, and SNMP for easy management. It also offers hardware redundancy for uninterrupted network service, and supports DC 2V~57V power supply. On top of that, this 10Gb switch comes with robust security features, including 802.1X, SSH, SSL, and ACLs. And it comes with a 3 year warranty, providing peace of mind that your network will remain reliable and secure for years to come. Whether you need to connect multiple devices or you are looking for a secure switch that offers high performance, Sirivision 10Gb Layer 3 Switch is the perfect solution for you.

Reliable 10gb Ethernet Switch DIN Rail/Wall Mount Form Factor And Seamless Connectivity 0

Customization:

10gb Layer 3 Switch by Sirivision

Brand Name: Sirivision
Place of Origin: Shenzhen,China
VLAN Support: Yes
Security: 802.1X, SSH, SSL, ACLs
Form Factor: Rail/Wall Mount
Warranty: 3 Years

Get the ultimate 10gb Layer 3 Switch from Sirivision. Our 10gb network switch, 10gb switch and 10gb ethernet switch are ideal for supporting advanced security features. Our 10gb Layer 3 Switch supports VLAN, 802.1X, SSH, SSL, ACLs and comes with a 3-year warranty. This 10gb Layer 3 Switch from Sirivision is the perfect solution for any business.



FAQ:

  • Q: What is the brand name of 10gb Layer 3 Switch?
    A: The brand name of 10gb Layer 3 Switch is Sirivision, which is made in Shenzhen, China.
  • Q: What are the features of 10gb Layer 3 Switch?
    A: 10gb Layer 3 Switch has features such as Layer 3 routing, high speed 10Gbps switching, and advanced QoS.
